A7236.0X66
A7236.0X66
A7236.0X66
A7236.0X66

A7236.0X66

UGC DOR7189822
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.93 CAD - $8.93 CAD
$8.93 CAD
$8.93 CAD - $8.93 CAD
$8.93 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A7236.0X66
GradeBronze
Product Number7189822
Product FamilyA723

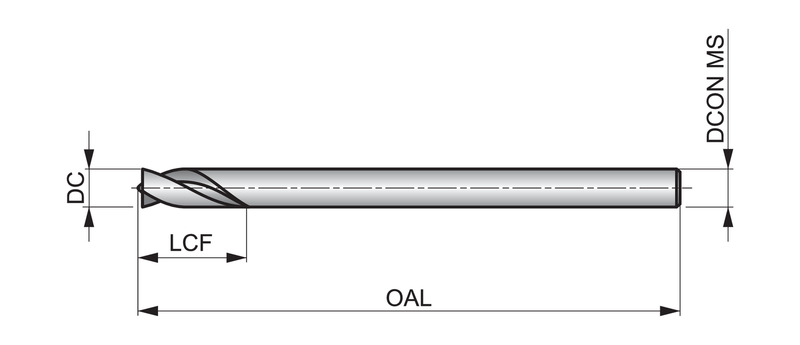

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number47189822
EAN7320760708019
File Type Download
A7236.0X66 — 3D Model STP Download
A7236.0X66 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
