A7238.0X117
A7238.0X117
A7238.0X117
A7238.0X117

A7238.0X117

UGC DOR7189825
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.73 CAD - $15.73 CAD
$15.73 CAD
$15.73 CAD - $15.73 CAD
$15.73 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A7238.0X117
GradeBronze
Product Number7189825
Product FamilyA723
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47189825
EAN7320760708040
File Type Download
A7238.0X117 — 3D Model STP Download

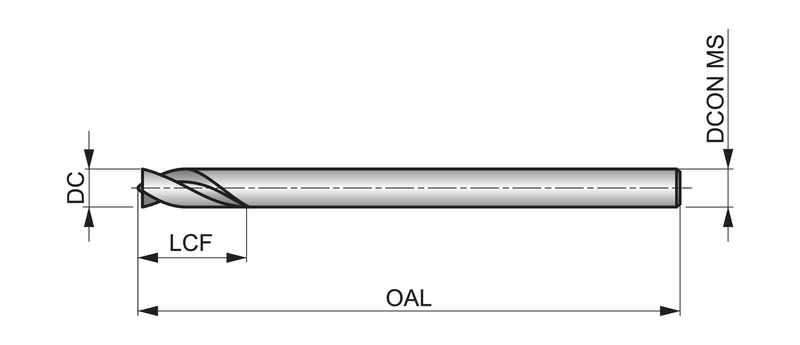

A7238.0X117 — Line Drawing PDF Download
