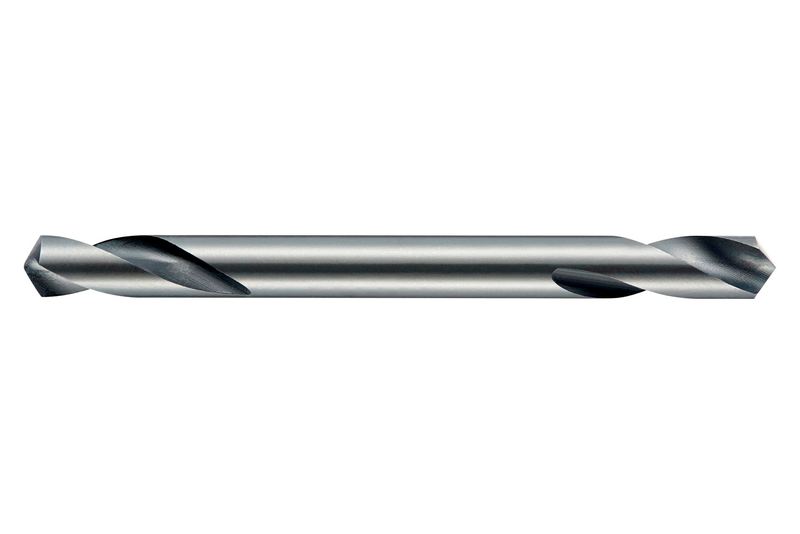

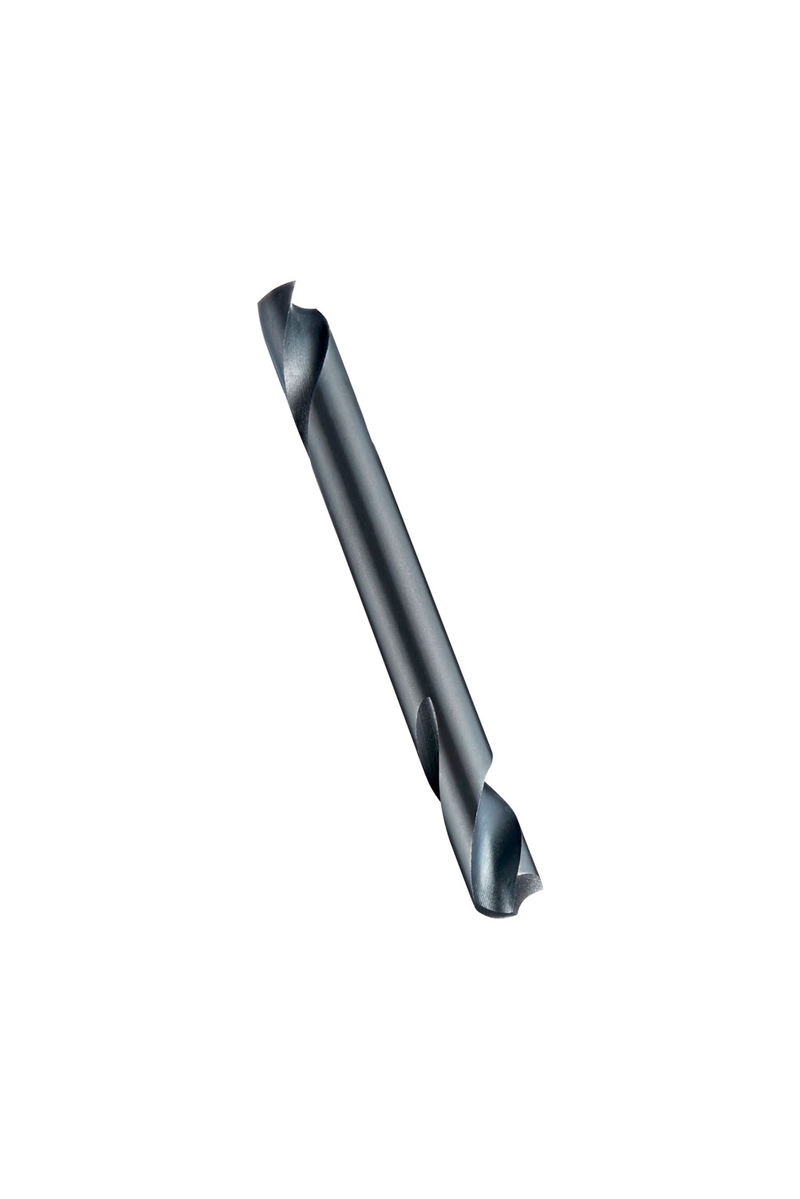

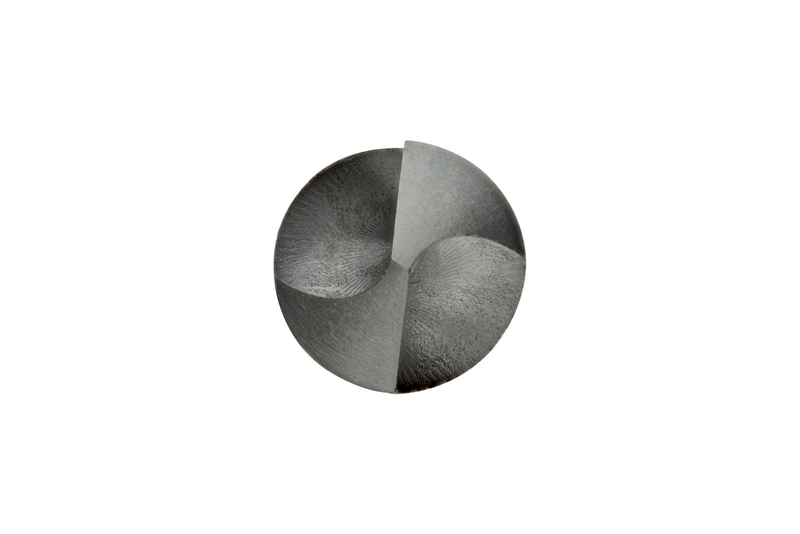

A1193.6
A1193.6
A1193.6
A1193.6

A1193.6

UGC DOR7189828
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.50 CAD - $4.50 CAD
$4.50 CAD
$4.50 CAD - $4.50 CAD
$4.50 CAD

Vendu en lots de : 10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1193.6
GradeTrempé à la vapeur
Product Number7189828
Product FamilyA119

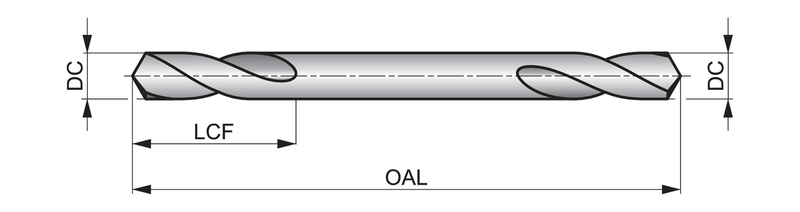

Dimensions
Cutting Diameter — in (DC)0.1417"
Cutting Diameter — mm (DC)3.6 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.4724"
Flute Length — mm (LCF)12.0 mm
Length × Diameter Ratio1.25
Connection Dia. — in (DCON)0.1417"
Connection Dia. — mm (DCON)3.6 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189828
EAN7320760708088
File Type Download
A1193.6 — Line Drawing PDF Download
