A2661.25X3.15
A2661.25X3.15
A2661.25X3.15

A2661.25X3.15

UGC DOR7191763
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.16 CAD - $32.16 CAD
$32.16 CAD
$32.16 CAD - $32.16 CAD
$32.16 CAD

Vendu en lots de : 1

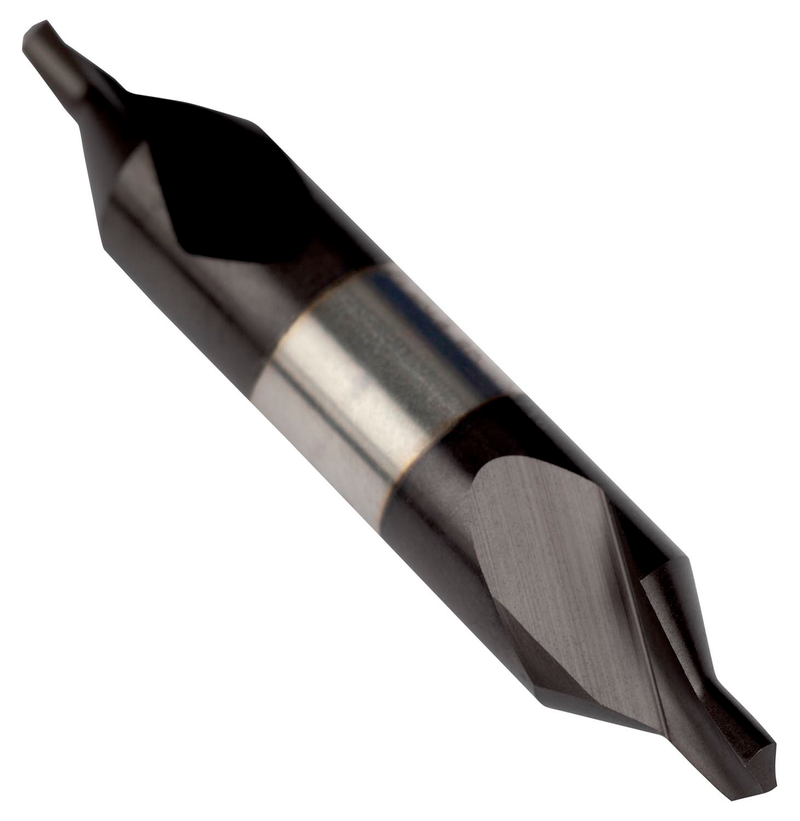

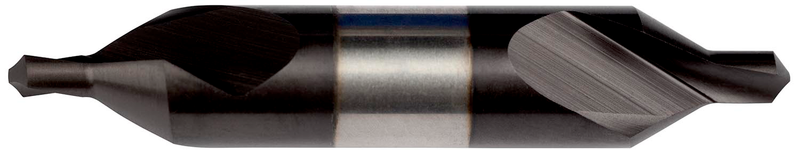

Forets à centrer (forêt et fraise conique combinés) à forme conique droite de 60°, double extrémité et corps cylindrique, diamètre de perçage de 1,25 mm, diamètre de corps de 3,15 mm et longueur totale de 31 mm, selon la norme DIN 333A, pour la production de trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, en HSS-E à base de cobalt et revêtement TiAlN, pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et des aciers alliés, et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2661.25X3.15
GradeTiAlN
Product Number7191763
Product FamilyA266

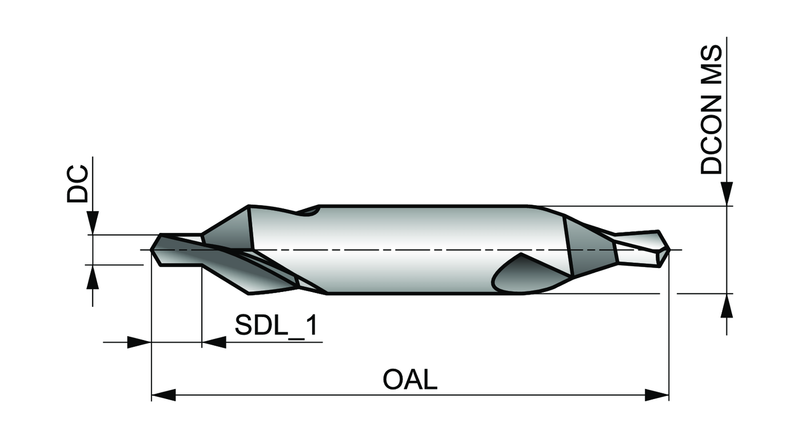

Dimensions
Cutting Diameter — in (DC)0.0492"
Cutting Diameter — mm (DC)1.25 mm
Overall Length — in (OAL)1.2205"
Overall Length — mm (OAL)31.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number47191763
EAN7320760708255
File Type Download
A2661.25X3.15 — Line Drawing PDF Download
