A2664.0X10.0
A2664.0X10.0
A2664.0X10.0

A2664.0X10.0

UGC DOR7191768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.76 CAD - $42.76 CAD
$42.76 CAD
$42.76 CAD - $42.76 CAD
$42.76 CAD

Vendu en lots de : 1

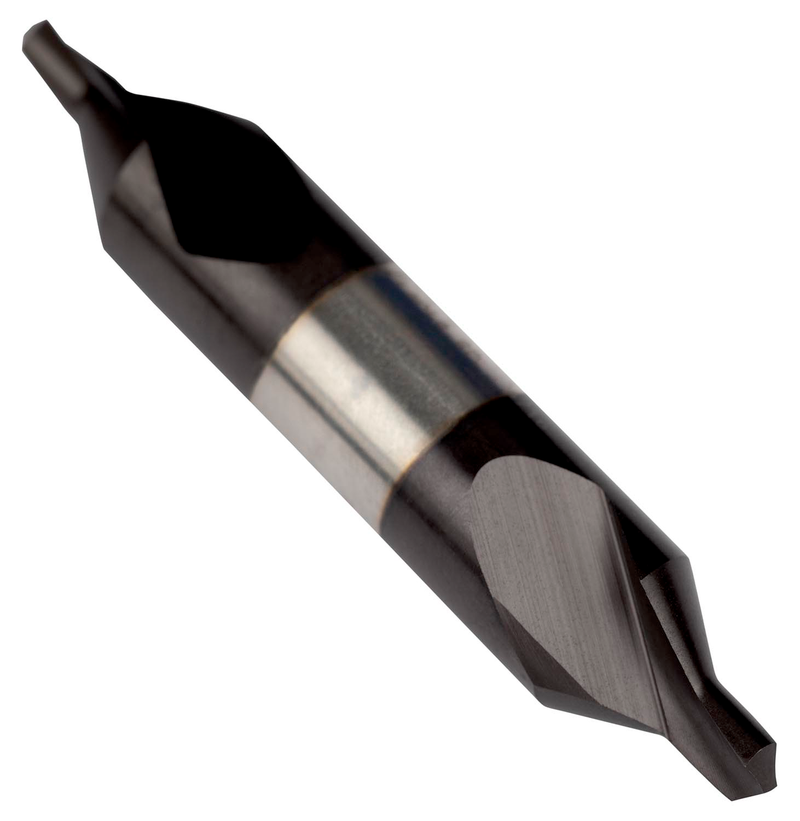

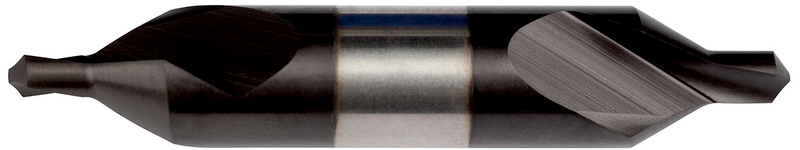

Foret à centrer (combiné foret et chanfrein) de forme conique droite de 60°, double extrémité et corps cylindrique, diamètre de perçage de 4,00 mm, diamètre de corps de 10,00 mm et longueur totale de 55 mm, conforme à la norme DIN 333A pour produire des trous de centrage standardisés selon la norme DIN 332 partie 1 forme A, en HSS-E à base de cobalt et revêtement TiAlN pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2664.0X10.0
GradeTiAlN
Product Number7191768
Product FamilyA266

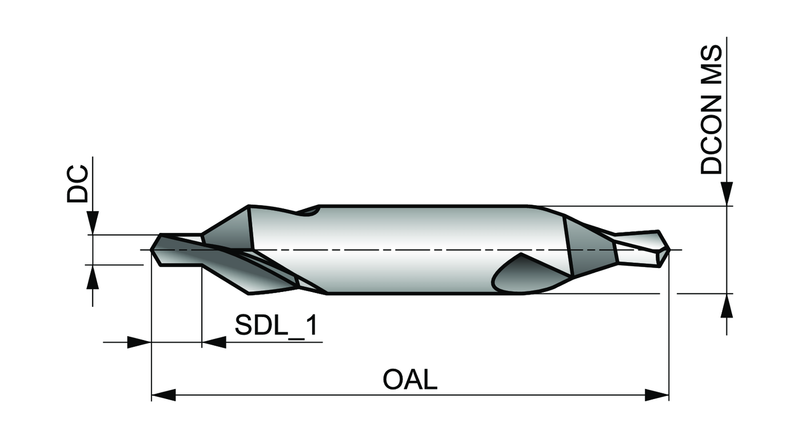

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number47191768
EAN7320760708309
File Type Download
A2664.0X10.0 — Line Drawing PDF Download
