UGC DOR7191769
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.37 CAD - $65.37 CAD
$65.37 CAD
$65.37 CAD - $65.37 CAD
$65.37 CAD

Vendu en lots de : 1

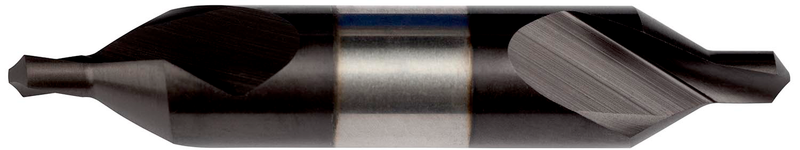

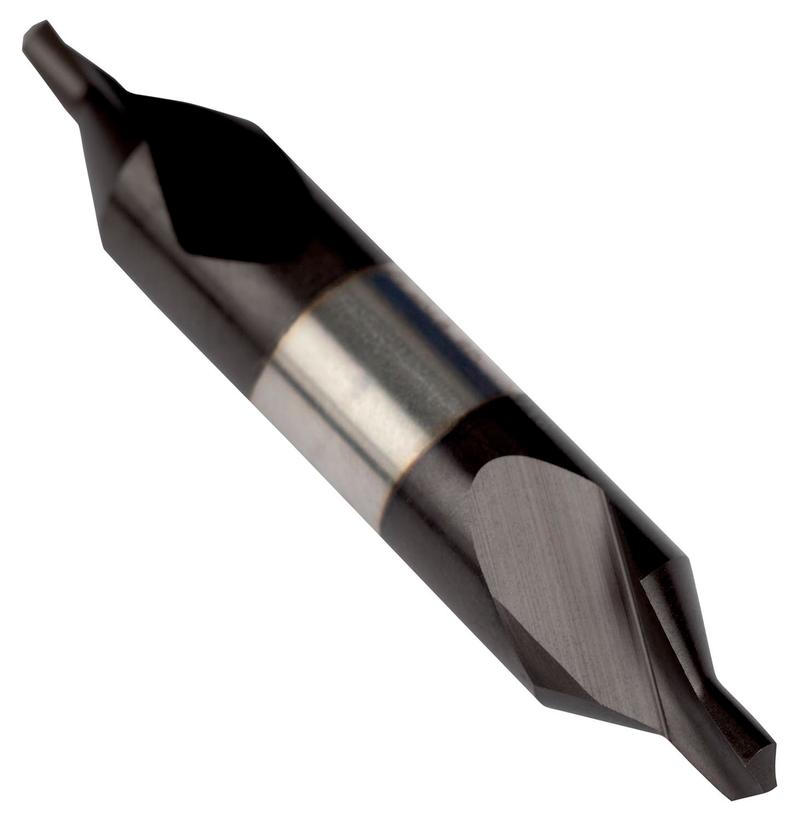

Foret à centrer (combiné foret et chanfrein) avec une forme conique droite de 60°, à double extrémité et corps cylindrique, diamètre de perçage de 5,00 mm, diamètre de corps de 12,50 mm et une longueur totale de 63 mm, selon la norme DIN 333A pour produire des trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, en HSS-E à base de cobalt et revêtement TiAlN pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2665.0X12.5
GradeTiAlN
Product Number7191769
Product FamilyA266

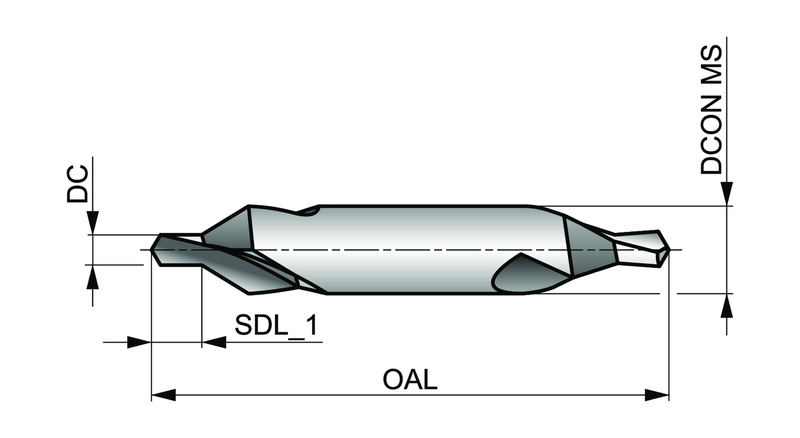

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number47191769
EAN7320760708316
File Type Download
A2665.0X12.5 — Line Drawing PDF Download
