A2422.0X6.0
A2422.0X6.0
A2422.0X6.0

A2422.0X6.0

UGC DOR7191817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.36 CAD - $22.36 CAD
$22.36 CAD
$22.36 CAD - $22.36 CAD
$22.36 CAD

Vendu en lots de : 1

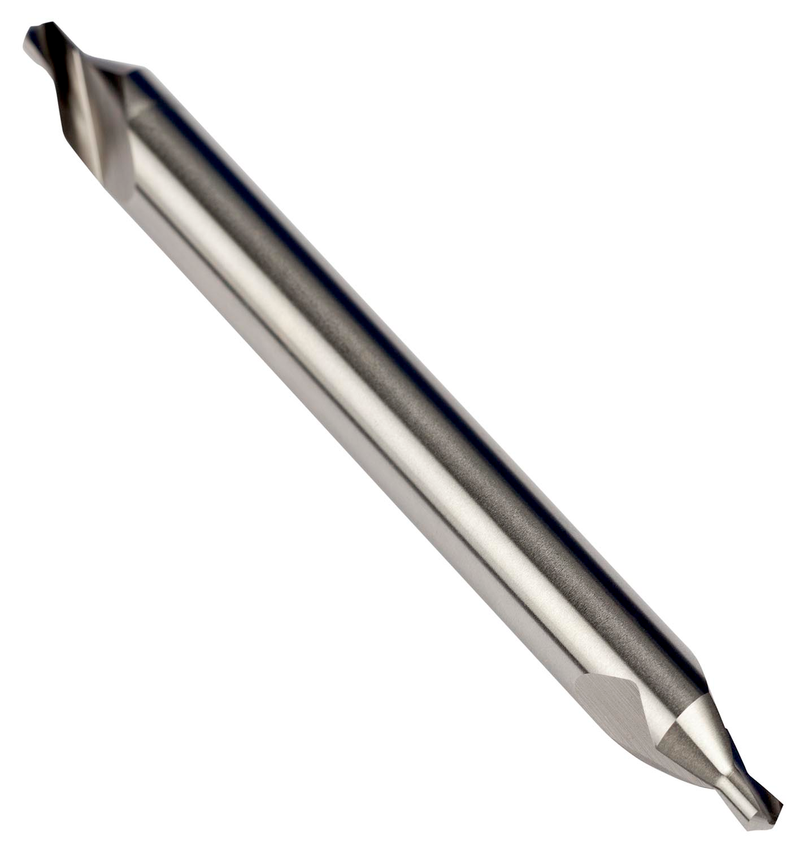

Foret à centrer (combiné perçage et chanfreinage) à forme conique droite de 60°, double-face et corps cylindrique, diamètre de perçage 2,00mm, diamètre de corps 6,00mm et longueur totale de 100mm, selon la norme DORMER pour produire des trous de centrage normalisés selon DIN 332 partie 1 forme A, en HSS-E à base de cobalt et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone et alliés non traités et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2422.0X6.0
GradeLumineux
Product Number7191817
Product FamilyA242

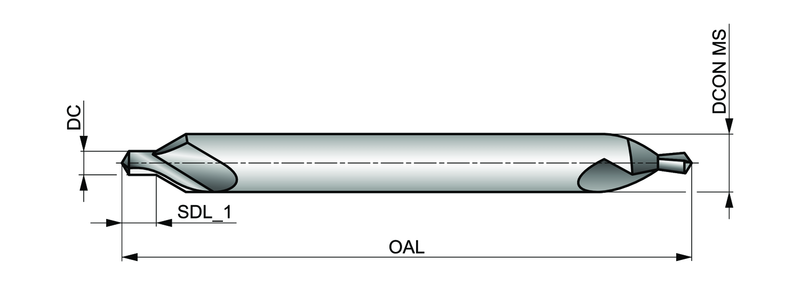

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47191817
EAN7320760708590
File Type Download
A2422.0X6.0 — Line Drawing PDF Download
