A2422.5X8.0
A2422.5X8.0
A2422.5X8.0

A2422.5X8.0

UGC DOR7191818
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.10 CAD - $29.10 CAD
$29.10 CAD
$29.10 CAD - $29.10 CAD
$29.10 CAD

Vendu en lots de : 1

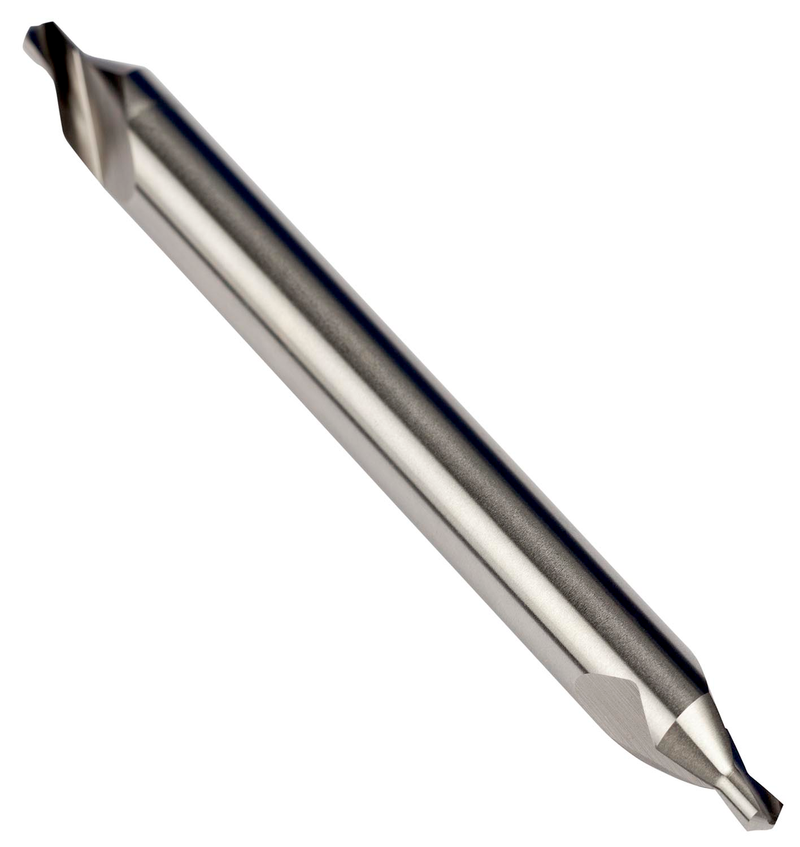

Foret à centrer (combiné perçage et chanfreinage) à forme conique droite de 60°, double extrémité et corps cylindrique, diamètre de perçage de 2,50 mm, diamètre de corps de 8,00 mm et longueur totale de 100 mm, selon la norme DORMER pour produire des trous de centrage normalisés selon DIN 332 partie 1 forme A, HSS-E à base de cobalt et finition brillante pour l'usinage d'acier à coupe libre, d'acier au carbone non allié et allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2422.5X8.0
GradeLumineux
Product Number7191818
Product FamilyA242

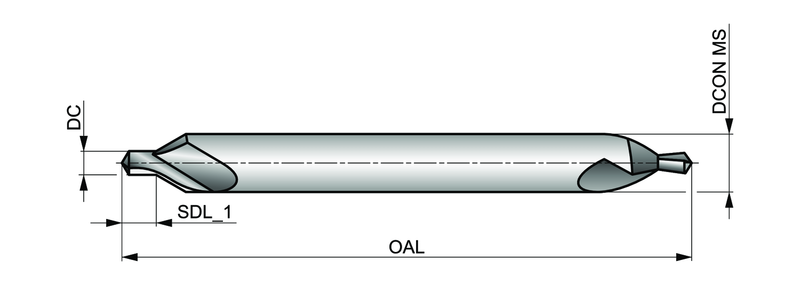

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47191818
EAN7320760708606
File Type Download
A2422.5X8.0 — Line Drawing PDF Download
