A2423.0X8.0
A2423.0X8.0
A2423.0X8.0

A2423.0X8.0

UGC DOR7191819
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.34 CAD - $27.34 CAD
$27.34 CAD
$27.34 CAD - $27.34 CAD
$27.34 CAD

Vendu en lots de : 1

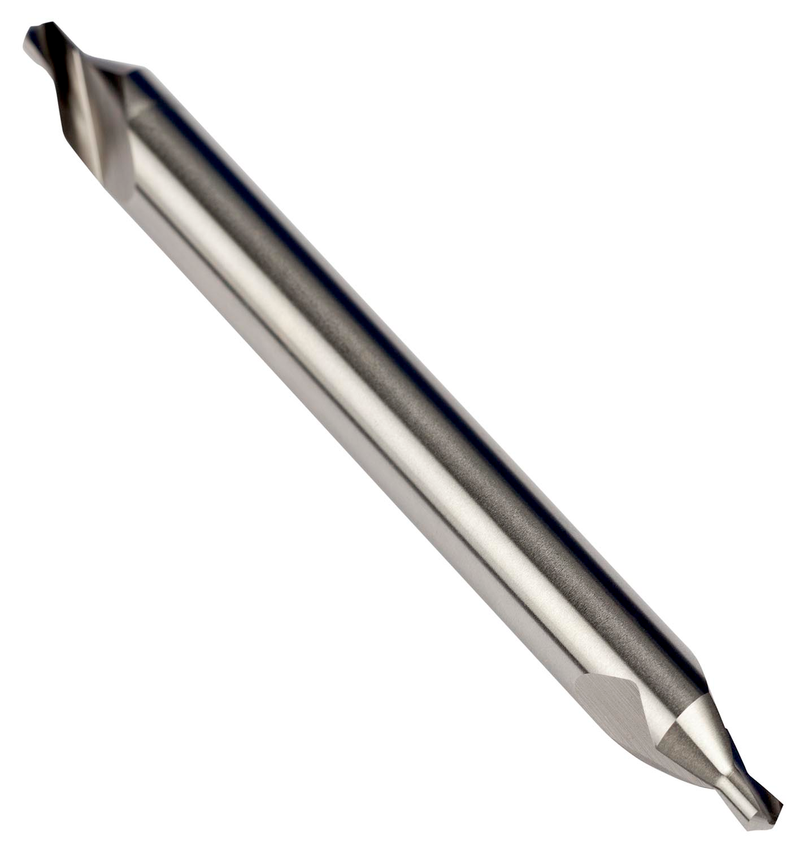

Foret à centrer (foret-taraud combiné) avec forme conique droite de 60°, double extrémité et corps cylindrique, diamètre de foret de 3,00mm, diamètre de corps de 8,00mm et longueur totale de 100mm, selon la norme DORMER pour produire des trous de centrage normalisés DIN 332 partie 1 forme A, en HSS-E à base de cobalt et finition brillante pour l'usinage de l'acier de décolletage, de l'acier au carbone non allié et allié, et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2423.0X8.0
GradeLumineux
Product Number7191819
Product FamilyA242

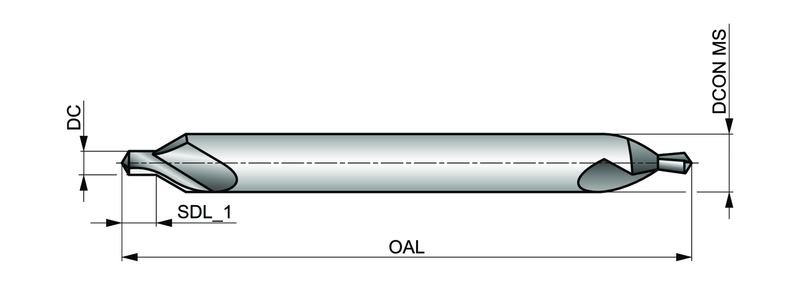

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47191819
EAN7320760708613
File Type Download
A2423.0X8.0 — Line Drawing PDF Download
