A2424.0X12.0
A2424.0X12.0
A2424.0X12.0

A2424.0X12.0

UGC DOR7191822
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.06 CAD - $51.06 CAD
$51.06 CAD
$51.06 CAD - $51.06 CAD
$51.06 CAD

Vendu en lots de : 1

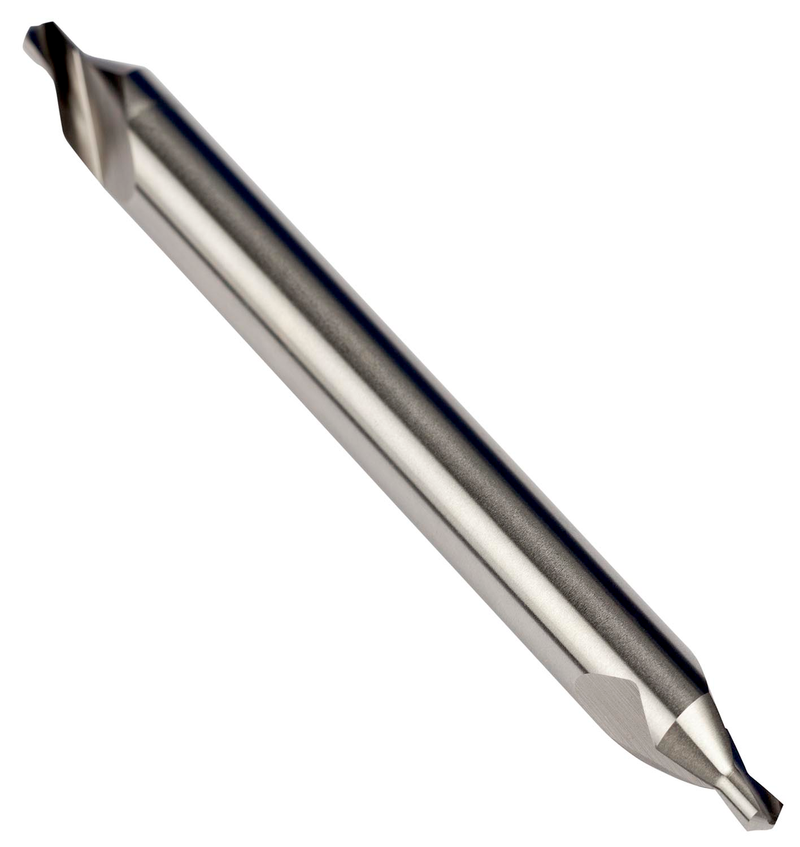

Foret à centrer (foret et fraise à chanfreiner combinés) à forme conique droite de 60°, à double extrémité et corps cylindrique, diamètre de perçage de 4,00 mm, diamètre de corps de 12,00 mm et longueur totale de 100 mm, selon la norme DORMER pour produire des trous de centrage normalisés selon DIN 332 partie 1 forme A, en HSS-E à base de cobalt et finition brillante pour l'usinage des aciers de décolletage, au carbone et alliés, et des fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2424.0X12.0
GradeLumineux
Product Number7191822
Product FamilyA242
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47191822
EAN7320760708644
File Type Download

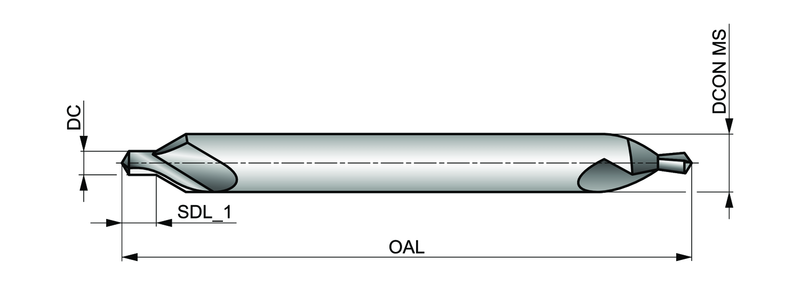

A2424.0X12.0 — Line Drawing PDF Download
