A2425.0X12.0
A2425.0X12.0
A2425.0X12.0

A2425.0X12.0

UGC DOR7191823
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.91 CAD - $74.91 CAD
$74.91 CAD
$74.91 CAD - $74.91 CAD
$74.91 CAD

Vendu en lots de : 1

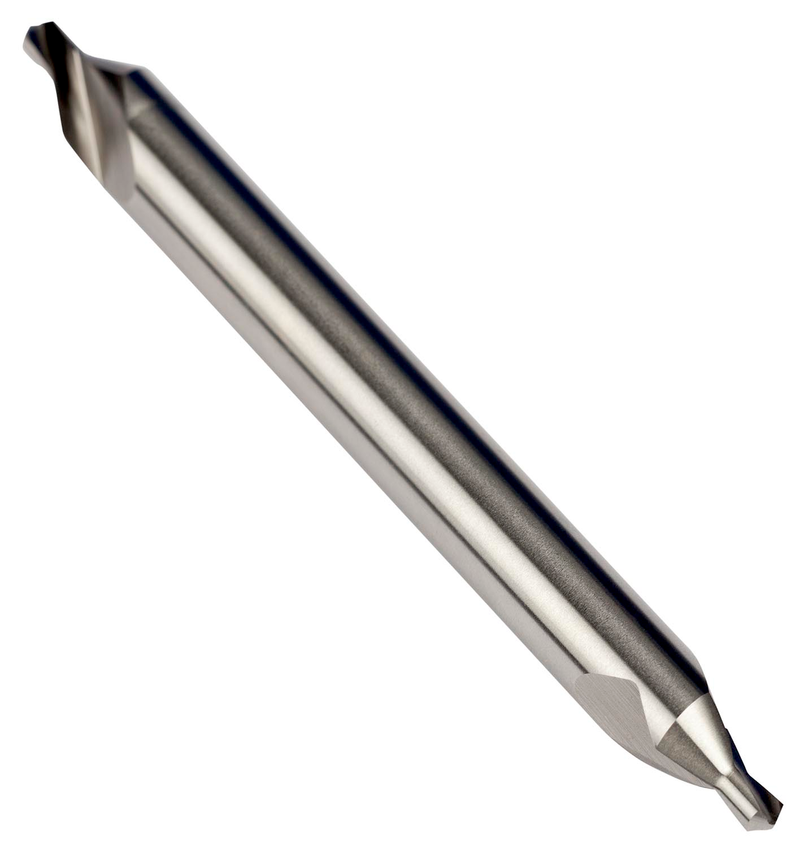

Foret à centrer (combiné foret et fraise à centrer) avec cône droit 60°, double extrémité et corps cylindrique, diamètre de perçage de 5,00 mm, diamètre de corps de 12,00 mm et longueur totale de 100 mm, selon la norme DORMER pour la production de trous de centrage normalisés selon la norme DIN 332 partie 1 forme A, en HSS-E à base de cobalt et finition brillante pour l'usinage d'aciers de décolletage, d'aciers au carbone non alliés et alliés et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A2425.0X12.0
GradeLumineux
Product Number7191823
Product FamilyA242

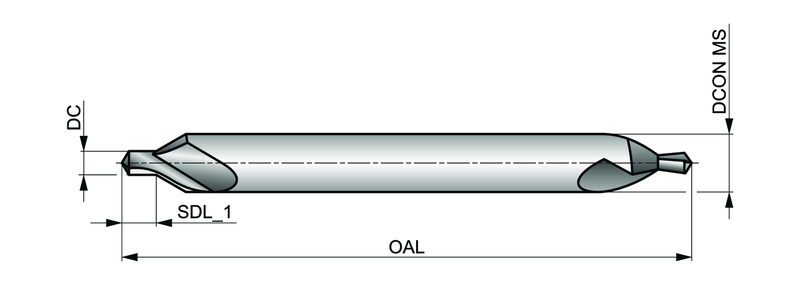

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number47191823
EAN7320760708651
File Type Download
A2425.0X12.0 — Line Drawing PDF Download
