R2002.0X5.0
R2002.0X5.0
R2002.0X5.0

R2002.0X5.0

UGC DOR7191827
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.64 CAD - $85.64 CAD
$85.64 CAD
$85.64 CAD - $85.64 CAD
$85.64 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R2002.0X5.0
GradeLumineux
Product Number7191827
Product FamilyR200
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number47191827
EAN7320760708699
File Type Download

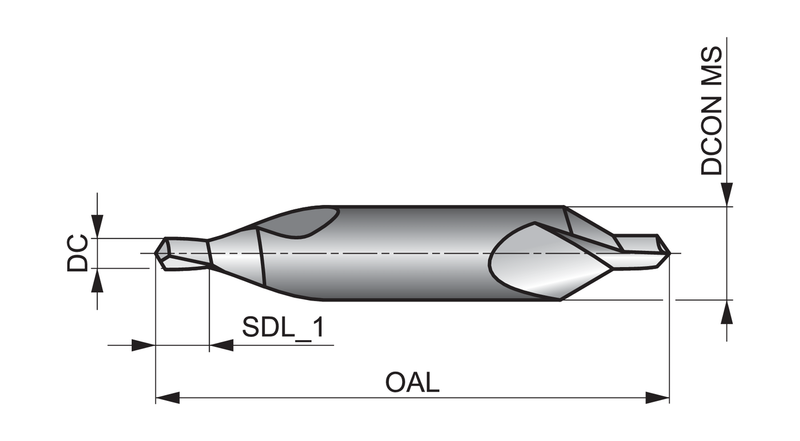

R2002.0X5.0 — Line Drawing PDF Download
