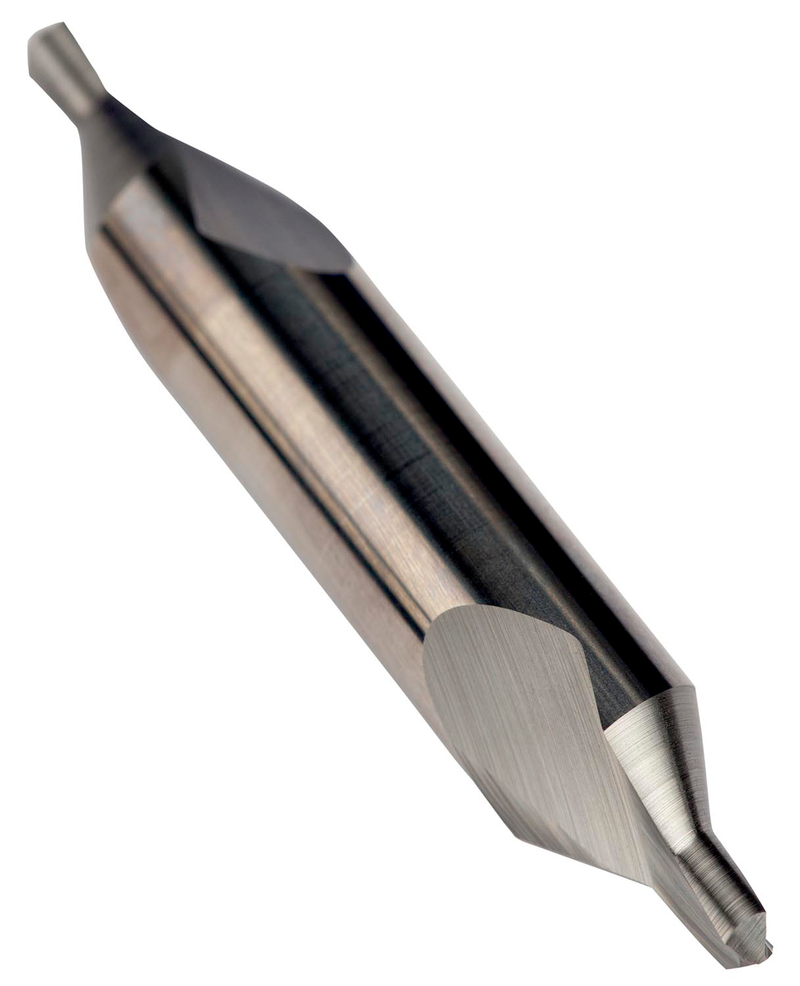

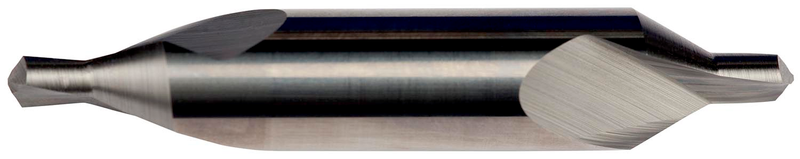

R2003.15X8.0
R2003.15X8.0
R2003.15X8.0

R2003.15X8.0

UGC DOR7191829
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.00 CAD - $132.00 CAD
$132.00 CAD
$132.00 CAD - $132.00 CAD
$132.00 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R2003.15X8.0
GradeLumineux
Product Number7191829
Product FamilyR200

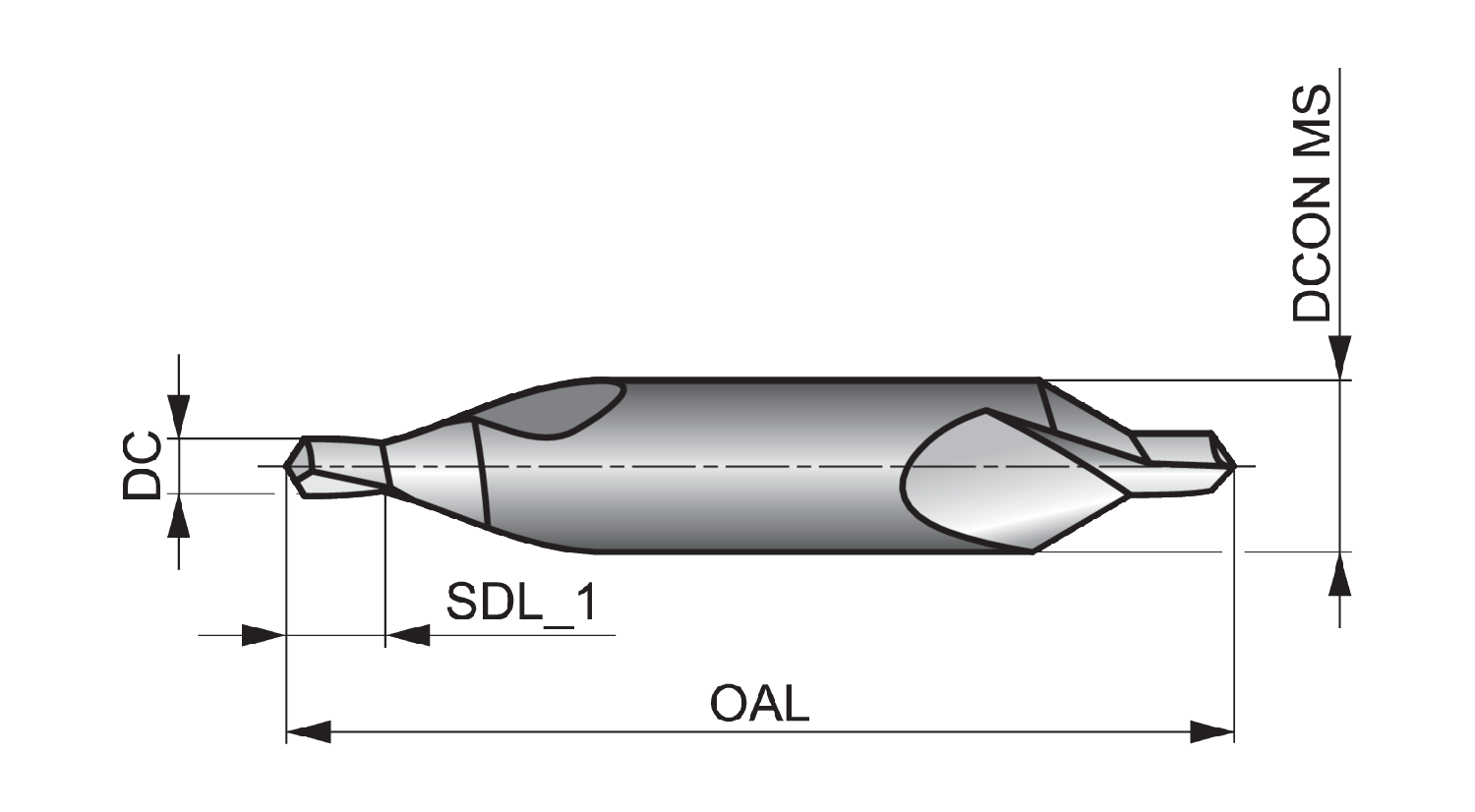

Dimensions
Cutting Diameter — in (DC)0.124"
Cutting Diameter — mm (DC)3.15 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 333A
Reference Numbers
EDP Number47191829
EAN7320760708712
File Type Download
R2003.15X8.0 — Line Drawing PDF Download
