331HDC
331HDC
331HDC

331HDC

UGC PRE7233505
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.81 CAD - $2.81 CAD
$2.81 CAD
$2.81 CAD - $2.81 CAD
$2.81 CAD

Vendu en lots de : 12

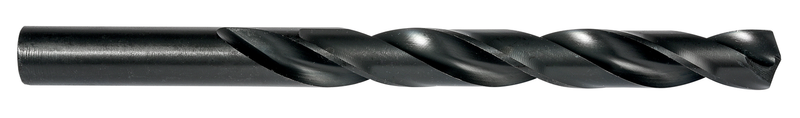

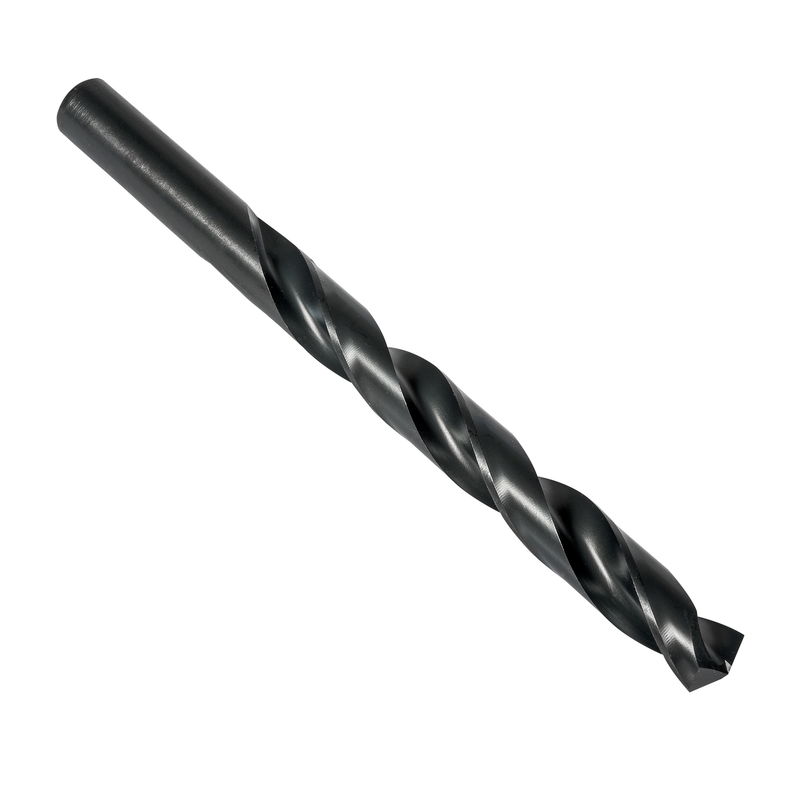

Foret normal avec queue cylindrique, diamètre 0,2420" (C) d'une longueur totale de 4" et d'une longueur de coupe de 2,3/4" selon la norme ANSI avec une pointe à 135° en croix, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDC
GradeTrempé à la vapeur
Product Number7233505
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.242"
Cutting Diameter — mm (DC)6.15 mm
Overall Length — mm (OAL)101.6 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.242"
Connection Dia. — mm (DCON)6.15 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233505
EAN7320760715482
File Type Download
331HDC — 3D Model STP Download
331HDC — Line Drawing PDF Download
