UGC PRE7233509
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.33 CAD - $3.33 CAD
$3.33 CAD
$3.33 CAD - $3.33 CAD
$3.33 CAD

Vendu en lots de : 12

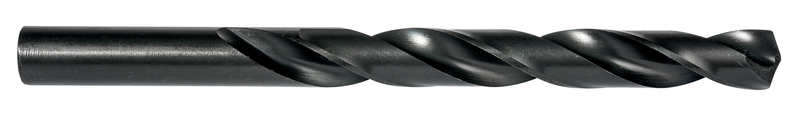

Foret jobber avec queue cylindrique, diamètre 0,2610" (G) avec une longueur totale de 4,1/8" et une longueur de coupe de 2,7/8" selon la norme ANSI avec une pointe à 135° à affûtage en croix, HSS avec finition trempée vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDG
GradeTrempé à la vapeur
Product Number7233509
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.261"
Cutting Diameter — mm (DC)6.63 mm
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.261"
Connection Dia. — mm (DCON)6.63 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233509
EAN7320760715529
File Type Download
331HDG — 3D Model STP Download
331HDG — Line Drawing PDF Download
