331HDI
331HDI
331HDI

331HDI

UGC PRE7233551
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.33 CAD - $3.33 CAD
$3.33 CAD
$3.33 CAD - $3.33 CAD
$3.33 CAD

Vendu en lots de : 12

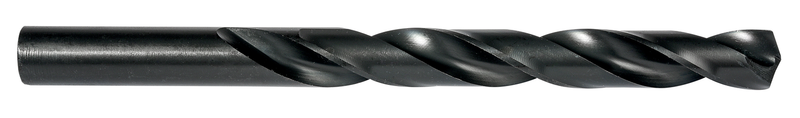

Foret court (jobber) à queue cylindrique, diamètre 0,2720" (I) avec une longueur totale de 4,1/8" et une longueur de goujure de 2,7/8" selon la norme ANSI avec une pointe à affûtage en croix à 135°, en HSS avec finition recuite à la vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDI
GradeTrempé à la vapeur
Product Number7233551
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.272"
Cutting Diameter — mm (DC)6.91 mm
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.272"
Connection Dia. — mm (DCON)6.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233551
EAN7320760715543
File Type Download
331HDI — 3D Model STP Download
331HDI — Line Drawing PDF Download
