UGC PRE7233552
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.60 CAD - $3.60 CAD
$3.60 CAD
$3.60 CAD - $3.60 CAD
$3.60 CAD

Vendu en lots de : 12

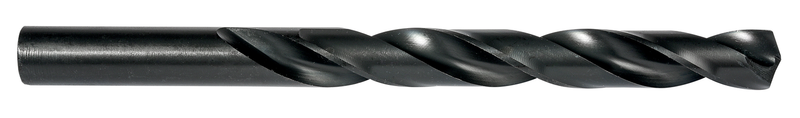

Foret court (jobber) à queue cylindrique, diamètre 0,2770" (J) avec une longueur totale de 4.1/8" et une longueur de goujure de 2.7/8" selon la norme ANSI avec une pointe à 135° affûtée en croix, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDJ
GradeTrempé à la vapeur
Product Number7233552
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.277"
Cutting Diameter — mm (DC)7.04 mm
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.277"
Connection Dia. — mm (DCON)7.04 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233552
EAN7320760715550
File Type Download
331HDJ — 3D Model STP Download
331HDJ — Line Drawing PDF Download
