331HDQ
331HDQ
331HDQ

331HDQ

UGC PRE7233559
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.74 CAD - $4.74 CAD
$4.74 CAD
$4.74 CAD - $4.74 CAD
$4.74 CAD

Vendu en lots de : 6

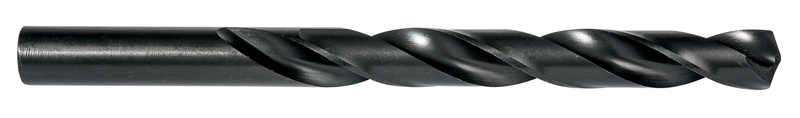

Foret court avec queue droite, diamètre 0,3320" (Q) avec une longueur totale de 4,3/4" et une longueur de coupe de 3,7/16" selon la norme ANSI avec une pointe fendue de 135°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDQ
GradeTrempé à la vapeur
Product Number7233559
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.332"
Cutting Diameter — mm (DC)8.43 mm
Overall Length — mm (OAL)120.65 mm
Flute Length — in (LCF)3.4375"
Flute Length — mm (LCF)87.31 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.332"
Connection Dia. — mm (DCON)8.43 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233559
EAN7320760715628
File Type Download
331HDQ — 3D Model STP Download
331HDQ — Line Drawing PDF Download
