331HDN5
331HDN5
331HDN5

331HDN5

UGC PRE7233573
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.56 CAD - $2.56 CAD
$2.56 CAD
$2.56 CAD - $2.56 CAD
$2.56 CAD

Vendu en lots de : 12

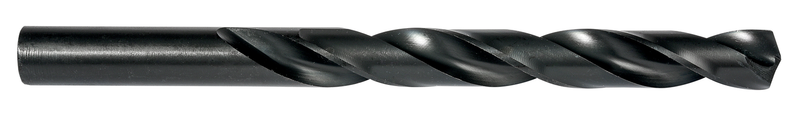

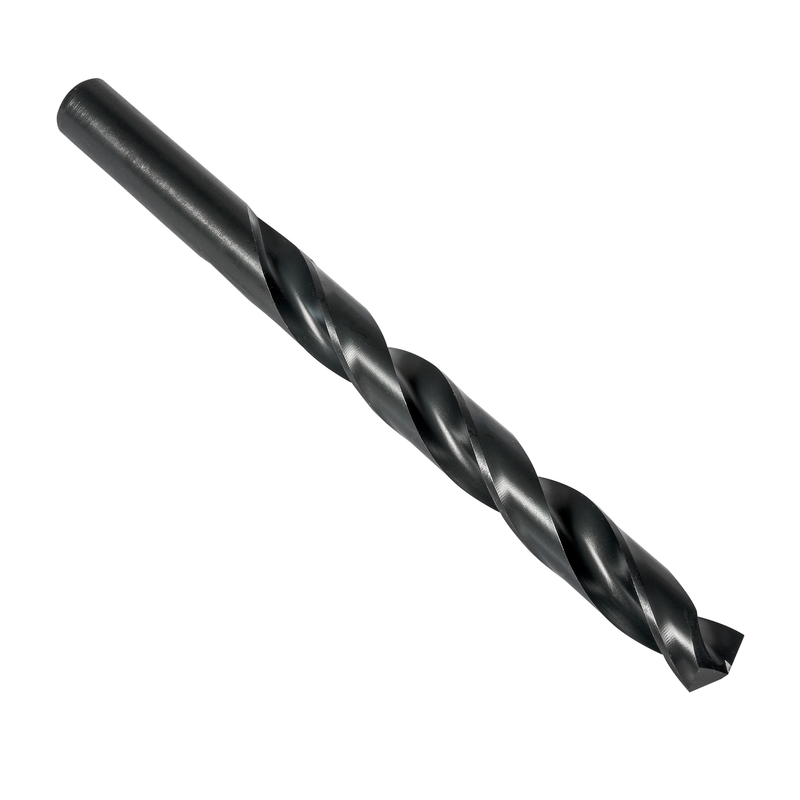

Foret court avec queue cylindrique, diamètre 0,2055" (N5), longueur totale de 3,3/4" et longueur utile de 2,1/2" selon la norme ANSI, pointe en croix à 135°, en acier rapide HSS avec finition par trempe vapeur, pour le perçage de 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN5
GradeTrempé à la vapeur
Product Number7233573
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.2055"
Cutting Diameter — mm (DC)5.22 mm
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2055"
Connection Dia. — mm (DCON)5.22 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233573
EAN7320760715765
File Type Download
331HDN5 — 3D Model STP Download
331HDN5 — Line Drawing PDF Download
