UGC PRE7233575
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.19 CAD - $2.19 CAD
$2.19 CAD
$2.19 CAD - $2.19 CAD
$2.19 CAD

Vendu en lots de : 12

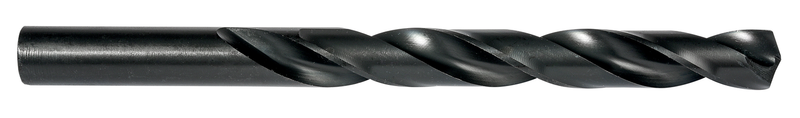

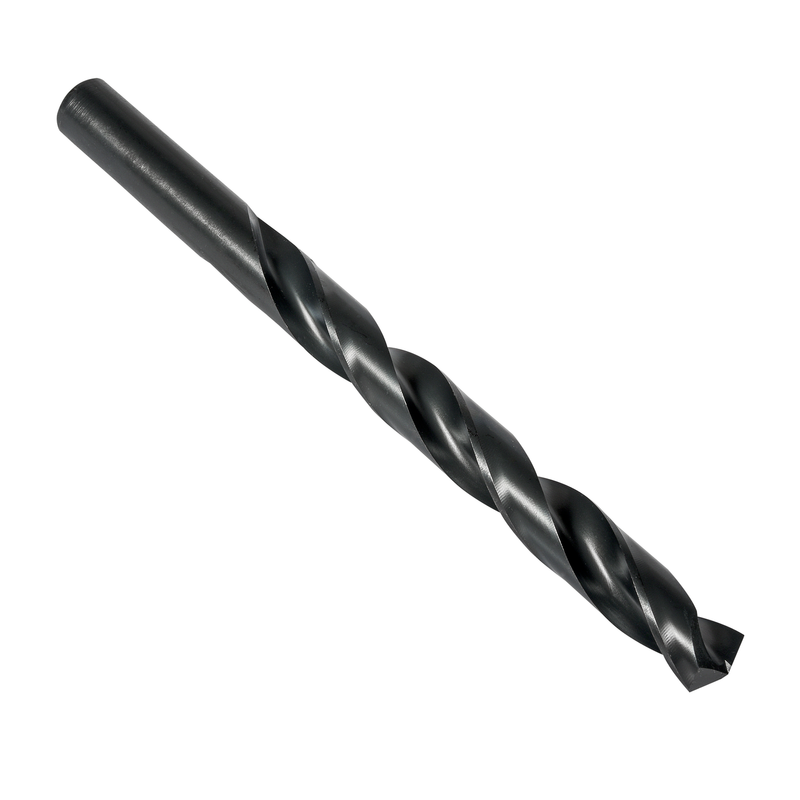

Foret série courte à queue cylindrique, diamètre 0,2010" (N7) avec une longueur totale de 3.5/8" et une longueur de coupe de 2.7/16" selon la norme ANSI avec une pointe à 135° et affûtage en croix, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN7
GradeTrempé à la vapeur
Product Number7233575
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.201"
Cutting Diameter — mm (DC)5.11 mm
Overall Length — mm (OAL)92.08 mm
Flute Length — in (LCF)2.4375"
Flute Length — mm (LCF)61.91 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.201"
Connection Dia. — mm (DCON)5.11 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233575
EAN7320760715789
File Type Download
331HDN7 — 3D Model STP Download
331HDN7 — Line Drawing PDF Download
