331HDN11
331HDN11
331HDN11

331HDN11

UGC PRE7233579
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.07 CAD - $2.07 CAD
$2.07 CAD
$2.07 CAD - $2.07 CAD
$2.07 CAD

Vendu en lots de : 12

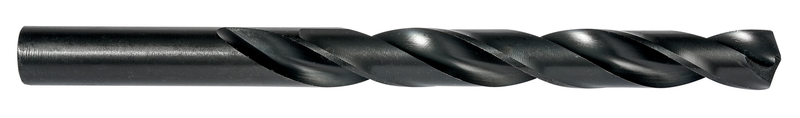

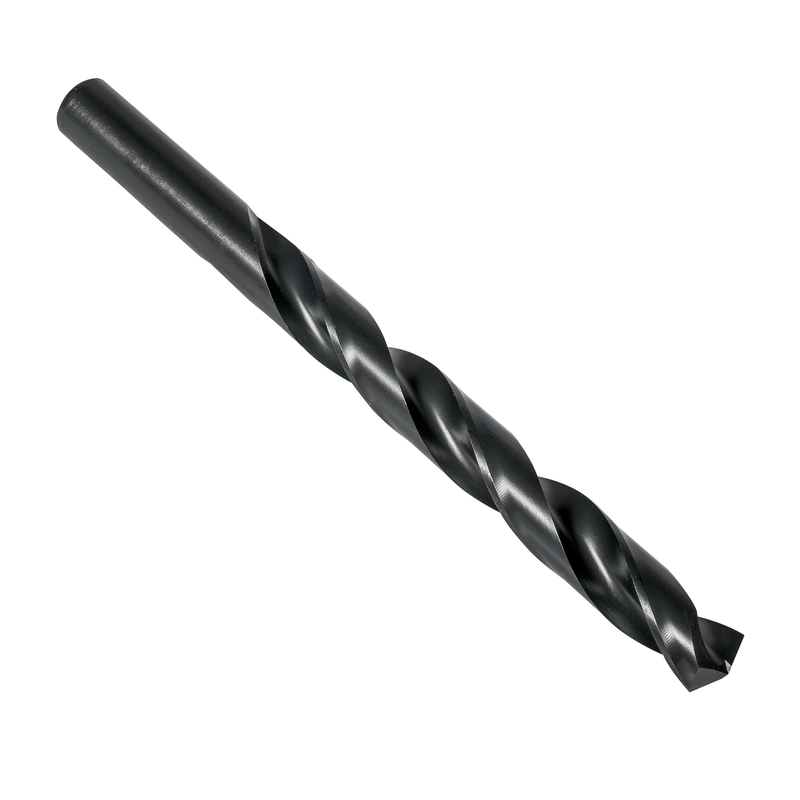

Foret court avec queue droite, diamètre 0,1910" (N11) avec une longueur totale de 3,1/2" et une longueur de coupe de 2,5/16" selon la norme ANSI avec une pointe à 135° à l'affûtage en croix, en acier rapide avec finition recuite à la vapeur pour le perçage de 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN11
GradeTrempé vapeur
Product Number7233579
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.191"
Cutting Diameter — mm (DC)4.85 mm
Overall Length — mm (OAL)88.9 mm
Flute Length — in (LCF)2.3125"
Flute Length — mm (LCF)58.74 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.191"
Connection Dia. — mm (DCON)4.85 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233579
EAN7320760715826
File Type Download
331HDN11 — 3D Model STP Download
331HDN11 — Line Drawing PDF Download
