331HDN16
331HDN16
331HDN16

331HDN16

UGC PRE7233584
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.04 CAD - $2.04 CAD
$2.04 CAD
$2.04 CAD - $2.04 CAD
$2.04 CAD

Vendu en lots de : 12

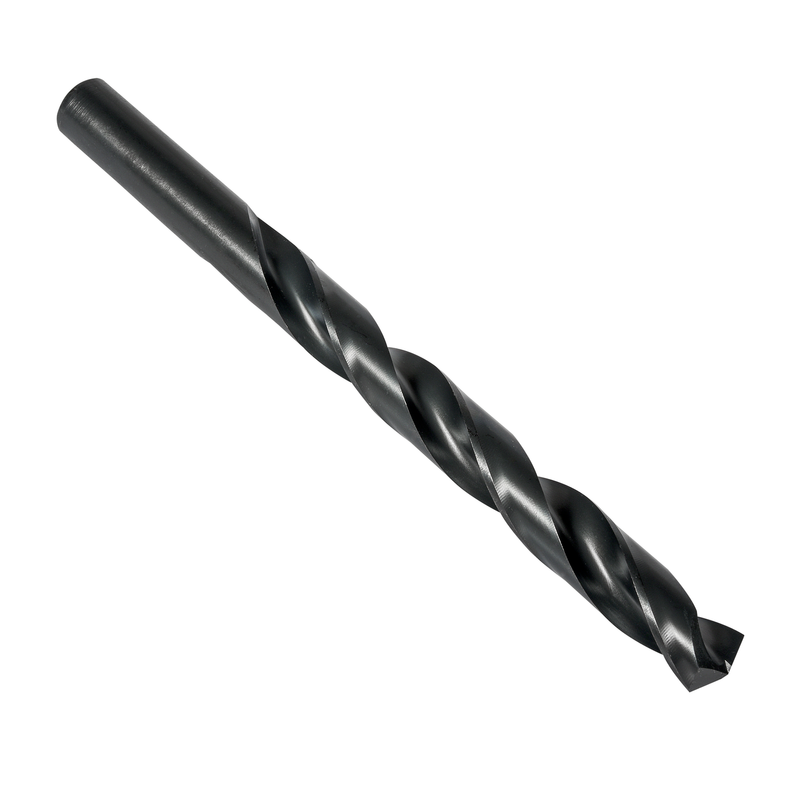

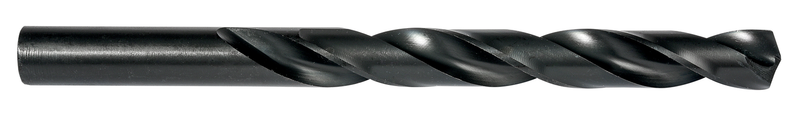

Foret de longueur courte à queue droite, diamètre 0,1770" (N16) avec une longueur totale de 3.3/8" et une longueur de coupe de 2.3/16" selon la norme ANSI, avec une pointe auto-centrante de 135°, en acier rapide HSS avec finition recuite à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN16
GradeTrempe vapeur
Product Number7233584
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — mm (OAL)85.73 mm
Flute Length — in (LCF)2.1875"
Flute Length — mm (LCF)55.56 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233584
EAN7320760715871
File Type Download
331HDN16 — 3D Model STP Download
331HDN16 — Line Drawing PDF Download
