331HDN20
331HDN20
331HDN20

331HDN20

UGC PRE7233588
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.69 CAD - $1.69 CAD
$1.69 CAD
$1.69 CAD - $1.69 CAD
$1.69 CAD

Vendu en lots de : 12

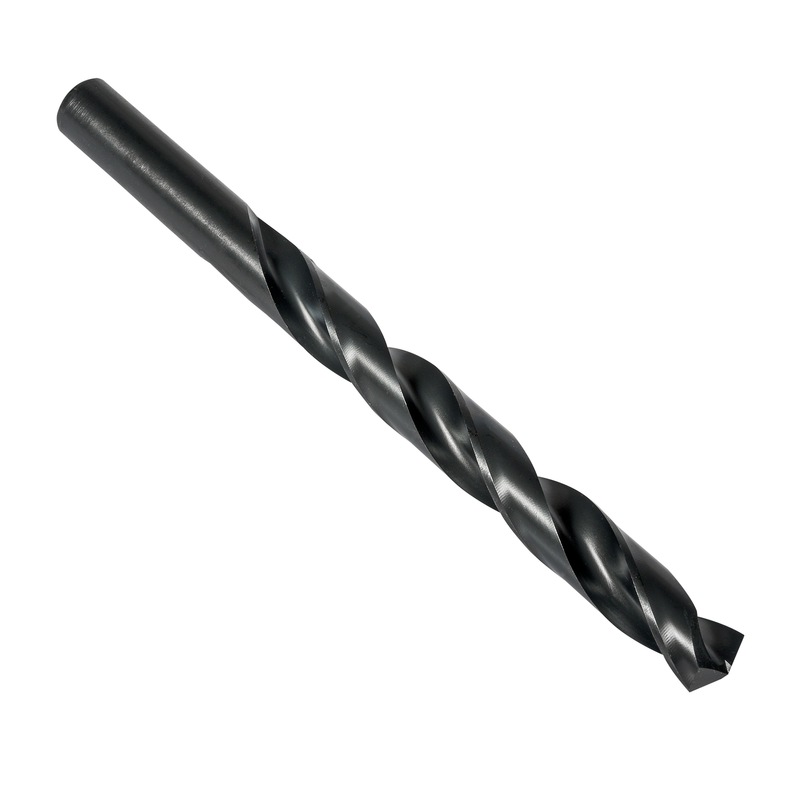

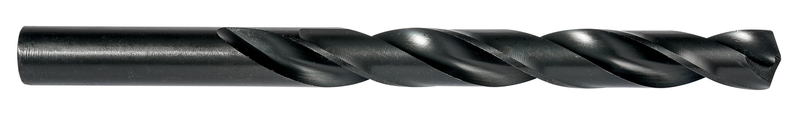

Foret court avec queue cylindrique, diamètre 0,1610" (N20) avec une longueur totale de 3,1/4" et une longueur de goujure de 2,1/8" selon la norme ANSI avec un affûtage en croix à 135°, en acier rapide (HSS) avec finition revenu à la vapeur pour le perçage de 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN20
GradeTrempé vapeur
Product Number7233588
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.161"
Cutting Diameter — mm (DC)4.09 mm
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.161"
Connection Dia. — mm (DCON)4.09 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233588
EAN7320760715918
File Type Download
331HDN20 — 3D Model STP Download
331HDN20 — Line Drawing PDF Download
