331HDN21
331HDN21
331HDN21

331HDN21

UGC PRE7233589
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.56 CAD - $1.56 CAD
$1.56 CAD
$1.56 CAD - $1.56 CAD
$1.56 CAD

Vendu en lots de : 12

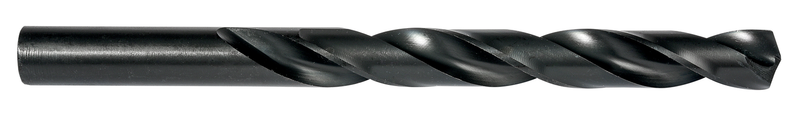

Foret court avec queue cylindrique, diamètre 0,1590" (N21) avec une longueur totale de 3,1/4" et une longueur de goujure de 2,1/8" selon la norme ANSI avec une pointe fendue à 135°, HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN21
GradeTrempé à la vapeur
Product Number7233589
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.159"
Cutting Diameter — mm (DC)4.04 mm
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.159"
Connection Dia. — mm (DCON)4.04 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233589
EAN7320760715925
File Type Download
331HDN21 — 3D Model STP Download
331HDN21 — Line Drawing PDF Download
