331HDN25
331HDN25
331HDN25

331HDN25

UGC PRE7233593
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.49 CAD - $1.49 CAD
$1.49 CAD
$1.49 CAD - $1.49 CAD
$1.49 CAD

Vendu en lots de : 12

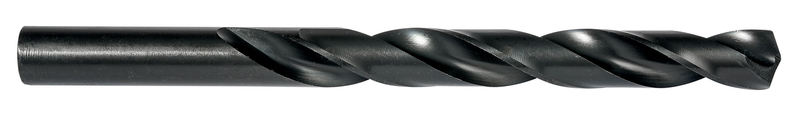

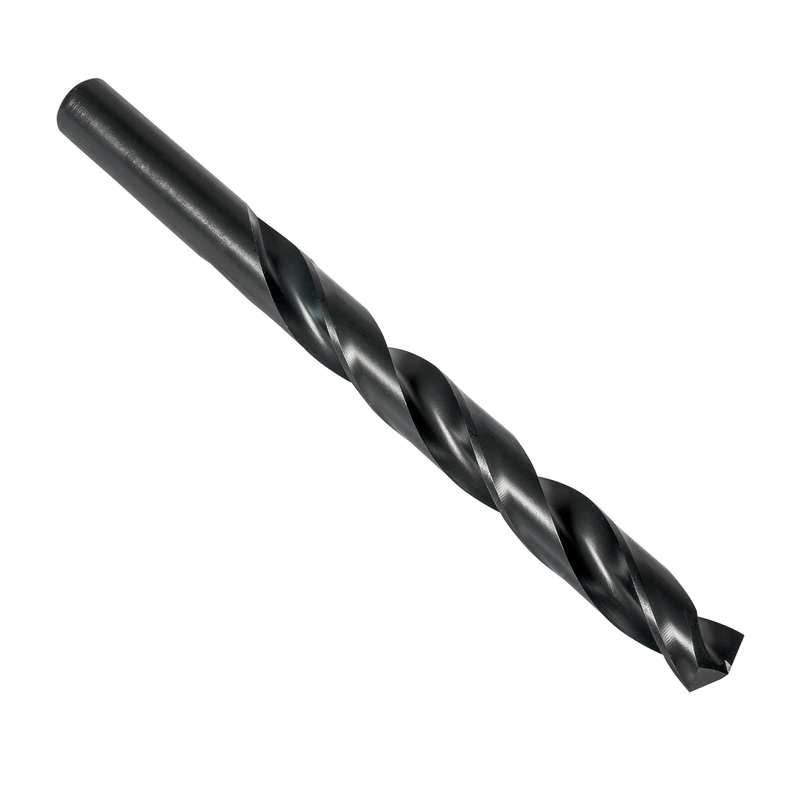

Foret jobber à queue cylindrique, diamètre 0,1495" (N25) avec une longueur totale de 3" et une longueur de coupe de 1,7/8" selon la norme ANSI avec une pointe fendue de 135°, en HSS avec finition recuite à la vapeur pour le perçage en 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN25
GradeTrempé à la vapeur
Product Number7233593
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.1495"
Cutting Diameter — mm (DC)3.8 mm
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)1.875"
Flute Length — mm (LCF)47.63 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1495"
Connection Dia. — mm (DCON)3.8 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233593
EAN7320760715963
File Type Download
331HDN25 — 3D Model STP Download
331HDN25 — Line Drawing PDF Download
