331HDN30
331HDN30
331HDN30

331HDN30

UGC PRE7233598
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.36 CAD - $1.36 CAD
$1.36 CAD
$1.36 CAD - $1.36 CAD
$1.36 CAD

Vendu en lots de : 12

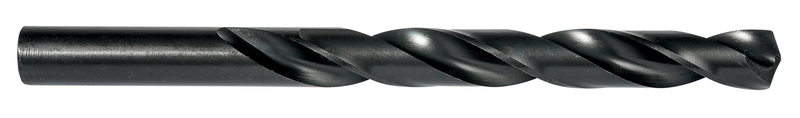

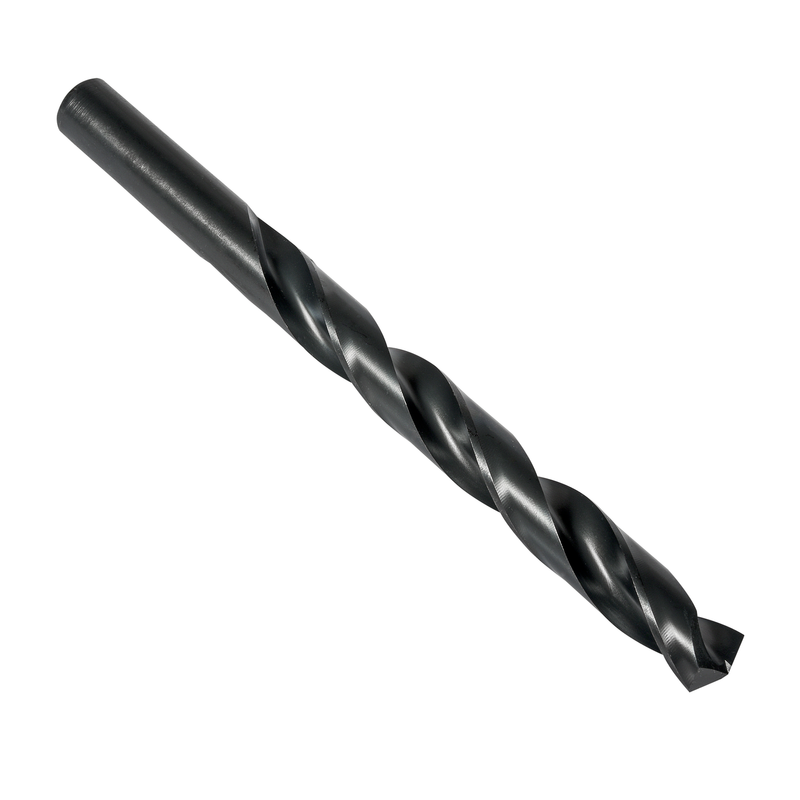

Foret de longueur jobber à queue cylindrique, diamètre 0,1285" (N30) avec une longueur totale de 2.3/4" et une longueur de coupe de 1.5/8" selon la norme ANSI avec une pointe fendue à 135°, HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN30
GradeTrempé à la vapeur
Product Number7233598
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.1285"
Cutting Diameter — mm (DC)3.26 mm
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1285"
Connection Dia. — mm (DCON)3.26 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233598
EAN7320760716014
File Type Download
331HDN30 — 3D Model STP Download
331HDN30 — Line Drawing PDF Download
