331HDN37
331HDN37
331HDN37

331HDN37

UGC PRE7233605
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.33 CAD - $1.33 CAD
$1.33 CAD
$1.33 CAD - $1.33 CAD
$1.33 CAD

Vendu en lots de : 12

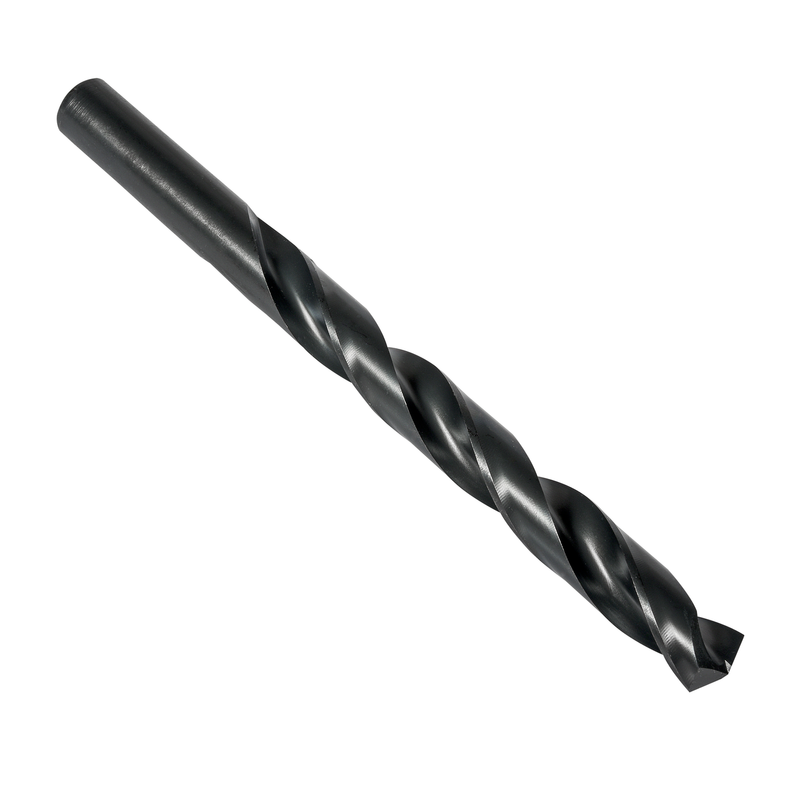

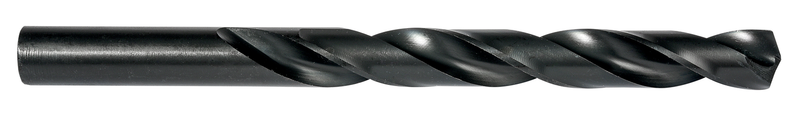

Foret de longueur jobber à queue cylindrique, diamètre 0,1040" (N37) avec une longueur totale de 2,1/2" et une longueur de coupe de 1,7/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN37
GradeTrempé à la vapeur
Product Number7233605
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.104"
Cutting Diameter — mm (DC)2.64 mm
Overall Length — mm (OAL)63.5 mm
Flute Length — in (LCF)1.4375"
Flute Length — mm (LCF)36.51 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.104"
Connection Dia. — mm (DCON)2.64 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233605
EAN7320760716083
File Type Download
331HDN37 — 3D Model STP Download
331HDN37 — Line Drawing PDF Download
