UGC PRE7233607
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.33 CAD - $1.33 CAD
$1.33 CAD
$1.33 CAD - $1.33 CAD
$1.33 CAD

Vendu en lots de : 12

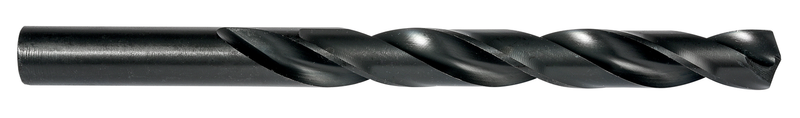

Foret court avec queue cylindrique, diamètre 0,0995" (N39) avec une longueur totale de 2.3/8" et une longueur de coupe de 1.3/8" selon la norme ANSI avec une pointe à affûtage en croix de 135°, en acier rapide HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN39
GradeTrempé à la vapeur
Product Number7233607
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.0995"
Cutting Diameter — mm (DC)2.53 mm
Overall Length — mm (OAL)60.33 mm
Flute Length — in (LCF)1.375"
Flute Length — mm (LCF)34.93 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0995"
Connection Dia. — mm (DCON)2.53 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233607
EAN7320760716106
File Type Download
331HDN39 — 3D Model STP Download
331HDN39 — Line Drawing PDF Download
