UGC PRE7233615
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.33 CAD - $1.33 CAD
$1.33 CAD
$1.33 CAD - $1.33 CAD
$1.33 CAD

Vendu en lots de : 12

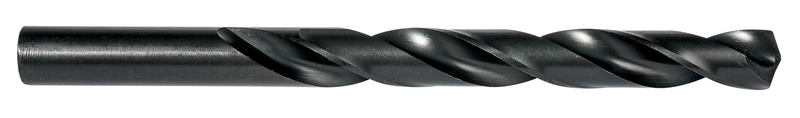

Foret de longueur jobber à queue droite, diamètre 0,0785" (N47) avec une longueur totale de 2" et une longueur de coupe de 1" selon la norme ANSI avec une pointe fendue à 135°, en acier rapide avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)331HDN47
GradeTrempé à la vapeur
Product Number7233615
Product Family331HD
Dimensions
Cutting Diameter — in (DC)0.0785"
Cutting Diameter — mm (DC)1.99 mm
Overall Length — mm (OAL)50.8 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0785"
Connection Dia. — mm (DCON)1.99 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233615
EAN7320760716182
File Type Download
331HDN47 — 3D Model STP Download
331HDN47 — Line Drawing PDF Download
