332HD17/64
332HD17/64

332HD17/64

UGC PRE7233644
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.50 CAD - $3.50 CAD
$3.50 CAD
$3.50 CAD - $3.50 CAD
$3.50 CAD

Vendu en lots de : 12

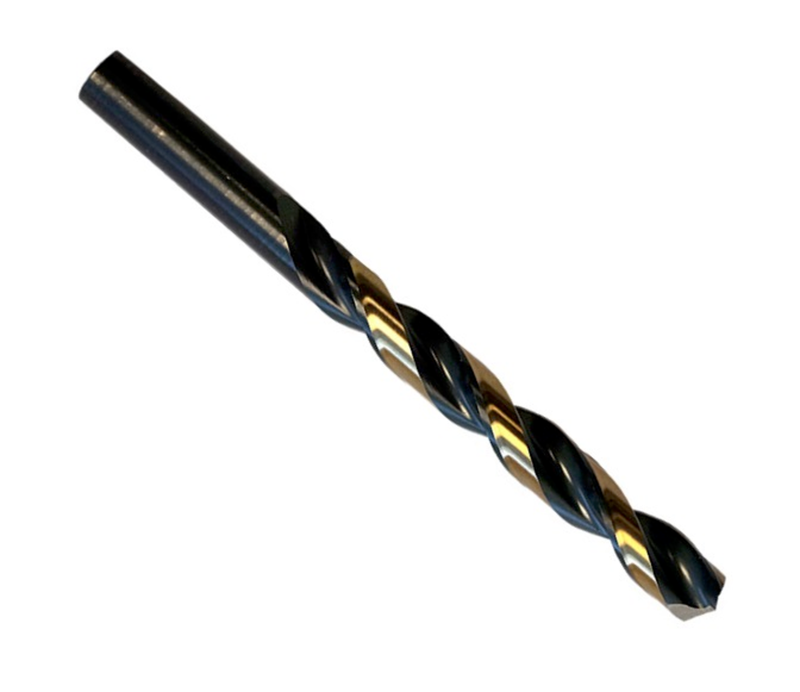

Foret de longueur jobber à queue cylindrique, diamètre 0,2656" (17/64) avec une longueur totale de 4,1/8" et une longueur de goujure de 2,7/8" selon la norme ANSI avec pointe fendue à 135°, HSS avec finition bronze + revenu vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HD17/64
GradeST/Bronze
Product Number7233644
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Flute Length — in (LCF)2.875"
Flute Length — mm (LCF)73.03 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2656"
Connection Dia. — mm (DCON)6.75 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233644
EAN7320760716472
File Type Download
332HD17/64 — 3D Model STP Download
332HD17/64 — Line Drawing PDF Download
