332HD1/2
332HD1/2

332HD1/2

UGC PRE7233659
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.09 CAD - $11.09 CAD
$11.09 CAD
$11.09 CAD - $11.09 CAD
$11.09 CAD

Vendu en lots de : 6

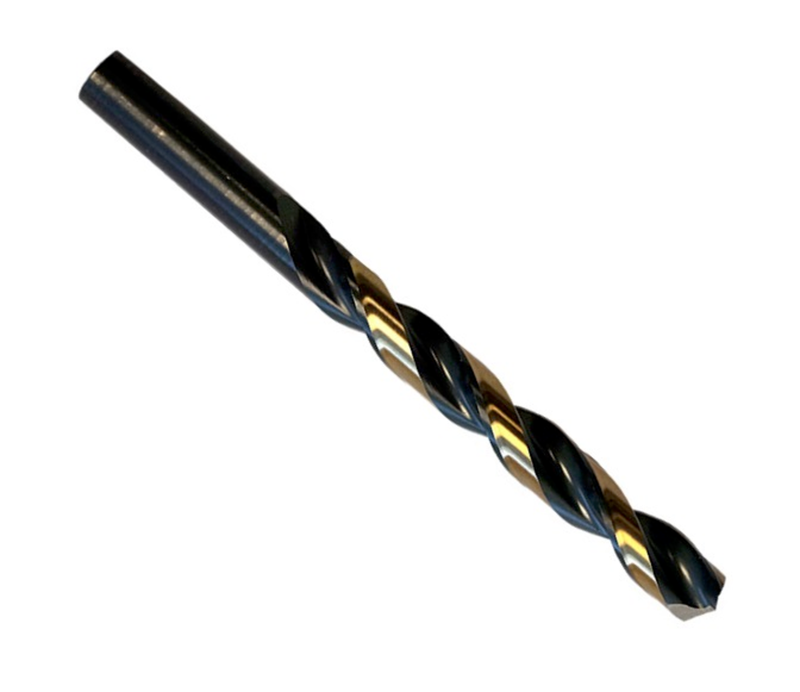

Foret hélice normale, queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 6" et une longueur de coupe de 4,1/2" selon la norme ANSI avec une pointe à 135° affûtage en croix, HSS avec finition bronze + trempe à la vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HD1/2
GradeST/Bronze
Product Number7233659
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233659
EAN7320760716625
File Type Download
332HD1/2 — 3D Model STP Download
332HD1/2 — Line Drawing PDF Download
