332HDN1
332HDN1

332HDN1

UGC PRE7233686
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.44 CAD - $3.44 CAD
$3.44 CAD
$3.44 CAD - $3.44 CAD
$3.44 CAD

Vendu en lots de : 12

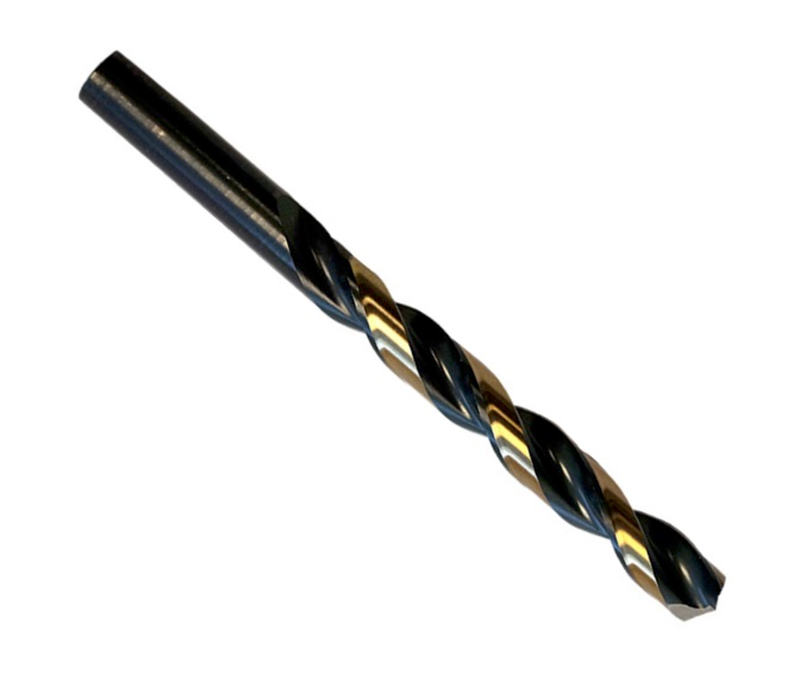

Foret jobber à queue cylindrique, diamètre 0,2280" (N1) avec une longueur totale de 3.7/8" et une longueur de coupe de 2.5/8" selon la norme ANSI avec une pointe à 135° en croix, en acier rapide avec finition traitée vapeur + bronze pour le perçage de 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN1
GradeST/Bronze
Product Number7233686
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.228"
Cutting Diameter — mm (DC)5.79 mm
Overall Length — in (OAL)3.875"
Overall Length — mm (OAL)98.43 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.228"
Connection Dia. — mm (DCON)5.79 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233686
EAN7320760716892
File Type Download
332HDN1 — 3D Model STP Download
332HDN1 — Line Drawing PDF Download
