332HDN4
332HDN4

332HDN4

UGC PRE7233689
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.20 CAD - $3.20 CAD
$3.20 CAD
$3.20 CAD - $3.20 CAD
$3.20 CAD

Vendu en lots de : 12

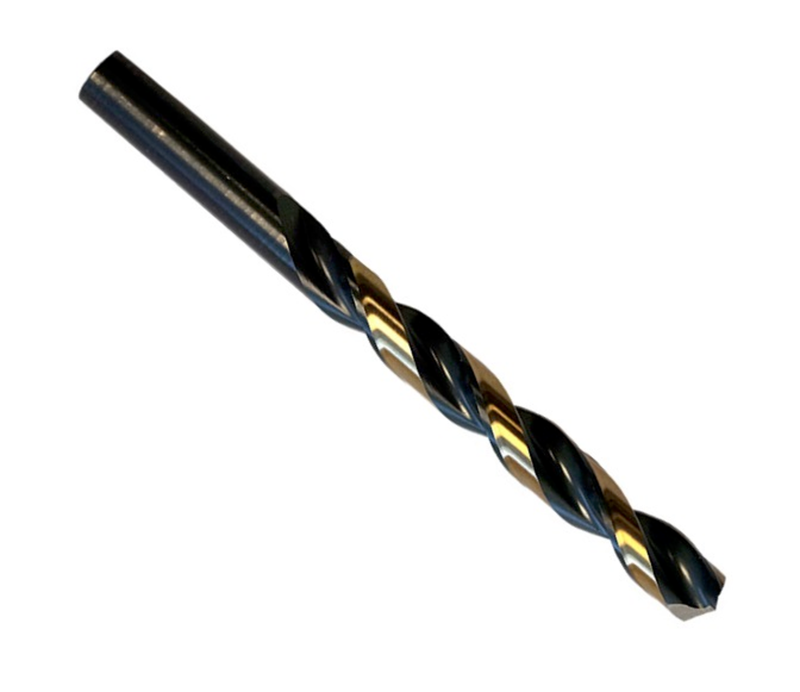

Foret court (jobber length) à queue cylindrique, diamètre 0,2090" (N4) avec une longueur totale de 3,3/4" et une longueur de coupe de 2,1/2" selon la norme ANSI avec une pointe à 135° affûtée en croix, en acier rapide (HSS) avec finition bronze et revenu vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN4
GradeST/Bronze
Product Number7233689
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.209"
Cutting Diameter — mm (DC)5.31 mm
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.209"
Connection Dia. — mm (DCON)5.31 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233689
EAN7320760716922
File Type Download
332HDN4 — 3D Model STP Download
332HDN4 — Line Drawing PDF Download
