332HDN5
332HDN5

332HDN5

UGC PRE7233690
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.20 CAD - $3.20 CAD
$3.20 CAD
$3.20 CAD - $3.20 CAD
$3.20 CAD

Vendu en lots de : 12

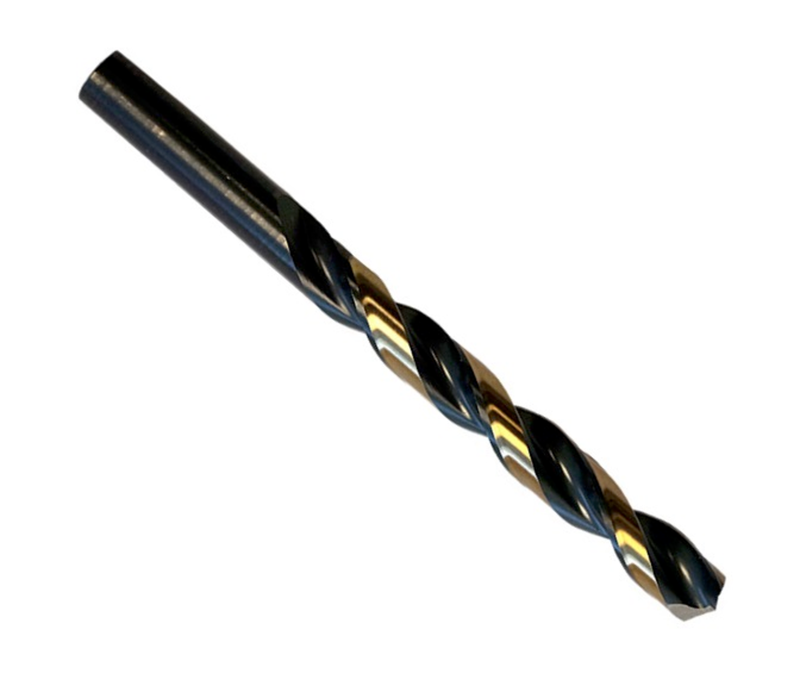

Foret de longueur jobber à queue droite, diamètre 0,2055" (N5) avec une longueur totale de 3,3/4" et une longueur de coupe de 2,1/2" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition bronze + trempe vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN5
GradeST/Bronze
Product Number7233690
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.2055"
Cutting Diameter — mm (DC)5.22 mm
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2055"
Connection Dia. — mm (DCON)5.22 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233690
EAN7320760716939
File Type Download
332HDN5 — 3D Model STP Download
332HDN5 — Line Drawing PDF Download
