332HDN16
332HDN16

332HDN16

UGC PRE7233701
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.53 CAD - $2.53 CAD
$2.53 CAD
$2.53 CAD - $2.53 CAD
$2.53 CAD

Vendu en lots de : 12

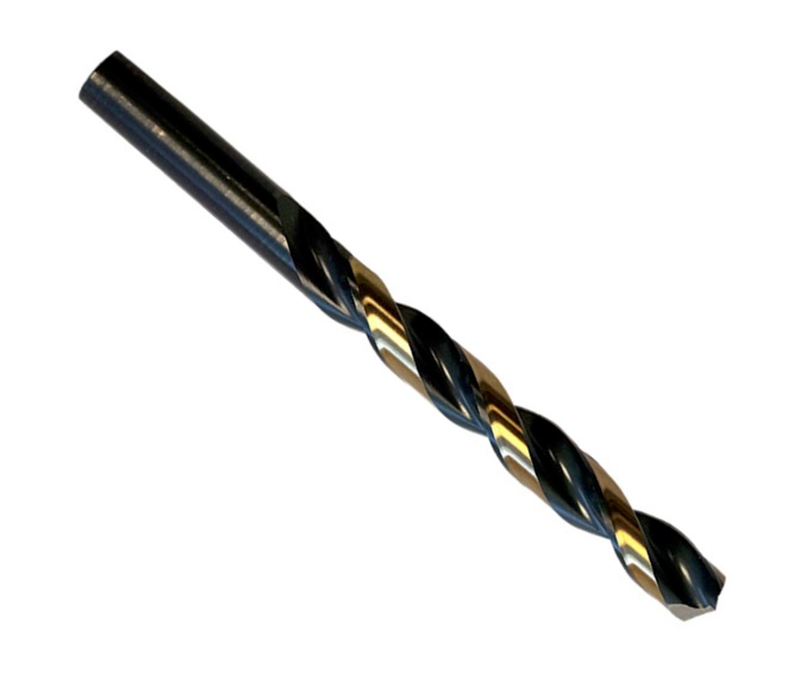

Foret série courte à queue cylindrique, diamètre 0,1770" (N16) avec une longueur totale de 3.3/8" et une longueur de coupe de 2.3/16" selon la norme ANSI avec pointe en croix à 135°, HSS finition bronzée + revenu vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN16
GradeST/Bronze
Product Number7233701
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Flute Length — in (LCF)2.1875"
Flute Length — mm (LCF)55.56 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233701
EAN7320760717042
File Type Download
332HDN16 — 3D Model STP Download
332HDN16 — Line Drawing PDF Download
