332HDN17
332HDN17

332HDN17

UGC PRE7233702
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.53 CAD - $2.53 CAD
$2.53 CAD
$2.53 CAD - $2.53 CAD
$2.53 CAD

Vendu en lots de : 12

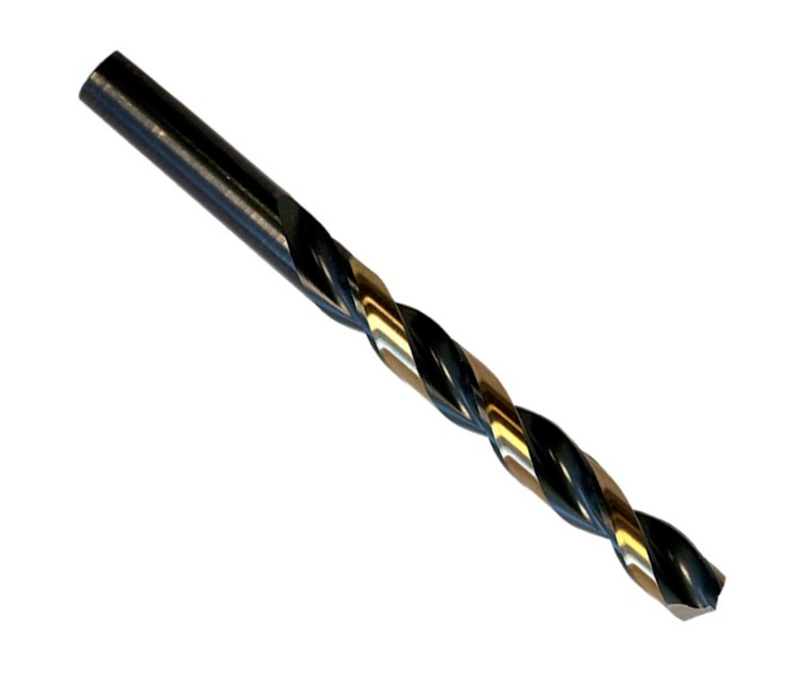

Foret de longueur standard à queue droite, diamètre 0,1730" (N17) avec une longueur totale de 3,3/8" et une longueur de coupe de 2,3/16" selon la norme ANSI avec une pointe fendue à 135°, en acier rapide avec finition traitée à la vapeur + bronze pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN17
GradeST/Bronze
Product Number7233702
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.173"
Cutting Diameter — mm (DC)4.39 mm
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Flute Length — in (LCF)2.1875"
Flute Length — mm (LCF)55.56 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.173"
Connection Dia. — mm (DCON)4.39 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233702
EAN7320760717059
File Type Download
332HDN17 — 3D Model STP Download
332HDN17 — Line Drawing PDF Download
