332HDN30
332HDN30

332HDN30

UGC PRE7233715
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.70 CAD - $1.70 CAD
$1.70 CAD
$1.70 CAD - $1.70 CAD
$1.70 CAD

Vendu en lots de : 12

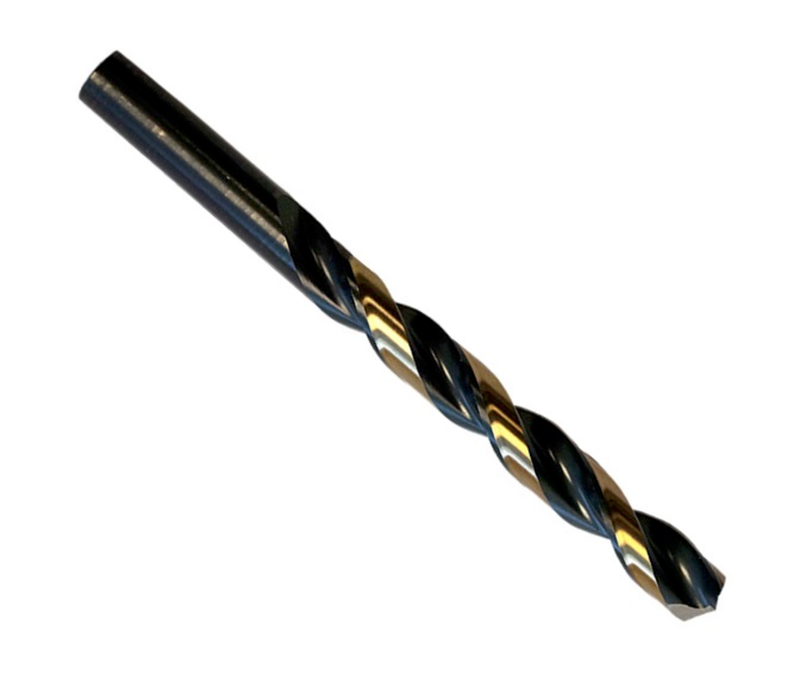

Foret série courte à queue droite, diamètre 0,1285" (N30) avec une longueur totale de 2.3/4" et une longueur de coupe de 1.5/8" selon la norme ANSI avec une pointe à 135° affûtée en croix, en acier rapide HSS avec finition bronze trempé à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)332HDN30
GradeST/Bronze
Product Number7233715
Product Family332HD
Dimensions
Cutting Diameter — in (DC)0.1285"
Cutting Diameter — mm (DC)3.26 mm
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1285"
Connection Dia. — mm (DCON)3.26 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233715
EAN7320760717189
File Type Download
332HDN30 — 3D Model STP Download
332HDN30 — Line Drawing PDF Download
