333HD1/8
333HD1/8

333HD1/8

UGC PRE7233752
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.04 CAD - $3.04 CAD
$3.04 CAD
$3.04 CAD - $3.04 CAD
$3.04 CAD

Vendu en lots de : 12

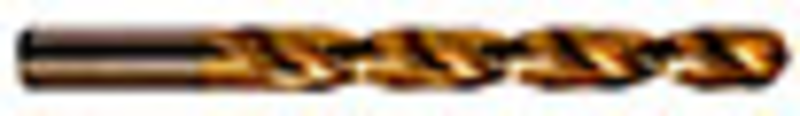

Forets courts à queue droite, diamètre 0,1250" (1/8) avec une longueur totale de 2.3/4" et une longueur de coupe de 1.5/8" selon la norme ANSI, avec pointe autocentrante 135°, HSS avec revêtement TiN pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD1/8
GradeTiN
Product Number7233752
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233752
EAN7320760717554
File Type Download
333HD1/8 — 3D Model STP Download
333HD1/8 — Line Drawing PDF Download
