333HD3/16
333HD3/16

333HD3/16

UGC PRE7233756
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.81 CAD - $3.81 CAD
$3.81 CAD
$3.81 CAD - $3.81 CAD
$3.81 CAD

Vendu en lots de : 12

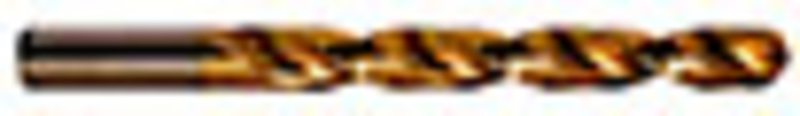

Foret série courte à queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 3,1/2" et une longueur de goujure de 2,5/16" selon la norme ANSI avec une pointe à 135° affûtée en croix, en acier rapide (HSS) avec revêtement TiN pour le perçage jusqu'à 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD3/16
GradeTiN
Product Number7233756
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Flute Length — in (LCF)2.3125"
Flute Length — mm (LCF)58.74 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233756
EAN7320760717592
File Type Download
333HD3/16 — 3D Model STP Download
333HD3/16 — Line Drawing PDF Download
