333HD13/64
333HD13/64

333HD13/64

UGC PRE7233757
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.29 CAD - $4.29 CAD
$4.29 CAD
$4.29 CAD - $4.29 CAD
$4.29 CAD

Vendu en lots de : 12

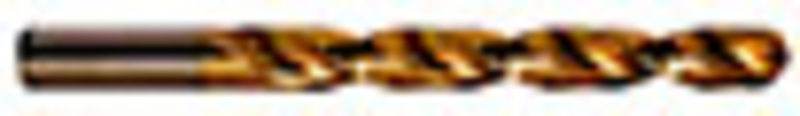

Foret de longueur jobber à queue droite, diamètre 0,2031" (13/64) avec une longueur totale de 3,5/8" et une longueur de goujure de 2,7/16" selon la norme ANSI avec pointe fendue à 135°, HSS avec revêtement TiN pour un perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD13/64
GradeTiN
Product Number7233757
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)3.625"
Overall Length — mm (OAL)92.08 mm
Flute Length — in (LCF)2.4375"
Flute Length — mm (LCF)61.91 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2031"
Connection Dia. — mm (DCON)5.16 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233757
EAN7320760717608
File Type Download
333HD13/64 — 3D Model STP Download
333HD13/64 — Line Drawing PDF Download
