333HD7/32
333HD7/32

333HD7/32

UGC PRE7233758
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.89 CAD - $4.89 CAD
$4.89 CAD
$4.89 CAD - $4.89 CAD
$4.89 CAD

Vendu en lots de : 12

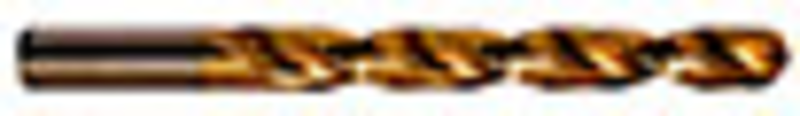

Forets courts à queue cylindrique, diamètre 0,2188" (7/32) d'une longueur totale de 3,3/4" et d'une longueur de coupe de 2,1/2" selon la norme ANSI avec une pointe à 135° en croix, HSS avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD7/32
GradeTiN
Product Number7233758
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.5"
Flute Length — mm (LCF)63.5 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2188"
Connection Dia. — mm (DCON)5.56 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233758
EAN7320760717615
File Type Download
333HD7/32 — 3D Model STP Download
333HD7/32 — Line Drawing PDF Download
