333HD15/64
333HD15/64

333HD15/64

UGC PRE7233759
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.79 CAD - $5.79 CAD
$5.79 CAD
$5.79 CAD - $5.79 CAD
$5.79 CAD

Vendu en lots de : 12

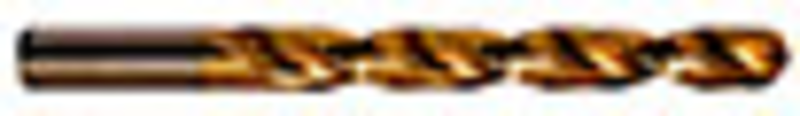

Foret court avec queue cylindrique, diamètre 0,2344" (15/64) avec une longueur totale de 3.7/8" et une longueur de goujure de 2.5/8" selon la norme ANSI avec une pointe à 135° en croix, en HSS avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD15/64
GradeTiN
Product Number7233759
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.2344"
Cutting Diameter — mm (DC)5.95 mm
Cutting Diameter — Fractional15/64
Overall Length — in (OAL)3.875"
Overall Length — mm (OAL)98.43 mm
Flute Length — in (LCF)2.625"
Flute Length — mm (LCF)66.68 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2344"
Connection Dia. — mm (DCON)5.95 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233759
EAN7320760717622
File Type Download
333HD15/64 — 3D Model STP Download
333HD15/64 — Line Drawing PDF Download
