333HD19/64
333HD19/64

333HD19/64

UGC PRE7233763
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.17 CAD - $8.17 CAD
$8.17 CAD
$8.17 CAD - $8.17 CAD
$8.17 CAD

Vendu en lots de : 12

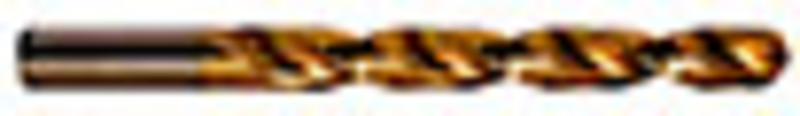

Foret série courte à queue cylindrique, diamètre 0,2969" (19/64) avec une longueur totale de 4.3/8" et une longueur de coupe de 3.1/16" selon la norme ANSI avec une pointe fendue à 135°, HSS avec revêtement TiN pour le perçage de 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD19/64
GradeTiN
Product Number7233763
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.2969"
Cutting Diameter — mm (DC)7.54 mm
Cutting Diameter — Fractional19/64
Overall Length — in (OAL)4.375"
Overall Length — mm (OAL)111.13 mm
Flute Length — in (LCF)3.0625"
Flute Length — mm (LCF)77.79 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2969"
Connection Dia. — mm (DCON)7.54 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233763
EAN7320760717660
File Type Download
333HD19/64 — 3D Model STP Download
333HD19/64 — Line Drawing PDF Download
