333HD5/16
333HD5/16

333HD5/16

UGC PRE7233764
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.60 CAD - $8.60 CAD
$8.60 CAD
$8.60 CAD - $8.60 CAD
$8.60 CAD

Vendu en lots de : 6

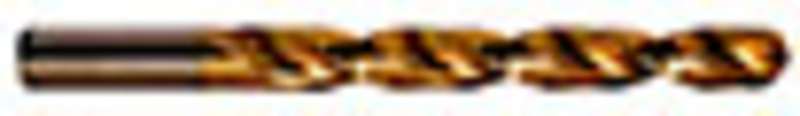

Foret court avec queue cylindrique, diamètre 0,3125" (5/16) avec une longueur totale de 4,1/2" et une longueur de coupe de 3,3/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD5/16
GradeTiN
Product Number7233764
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)3.1875"
Flute Length — mm (LCF)80.96 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233764
EAN7320760717677
File Type Download
333HD5/16 — 3D Model STP Download
333HD5/16 — Line Drawing PDF Download
