333HD21/64
333HD21/64

333HD21/64

UGC PRE7233765
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.01 CAD - $10.01 CAD
$10.01 CAD
$10.01 CAD - $10.01 CAD
$10.01 CAD

Vendu en lots de : 6

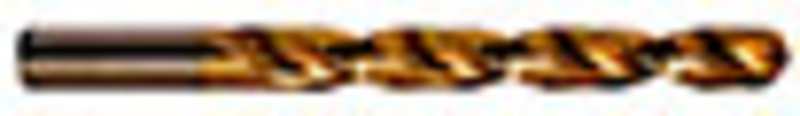

Foret série courte à queue cylindrique, diamètre 0,3281" (21/64) avec une longueur totale de 4.5/8" et une longueur de coupe de 3.5/16" selon la norme ANSI avec une pointe à 135° en croix, HSS avec revêtement TiN pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD21/64
GradeTiN
Product Number7233765
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.3281"
Cutting Diameter — mm (DC)8.33 mm
Cutting Diameter — Fractional21/64
Overall Length — in (OAL)4.625"
Overall Length — mm (OAL)117.48 mm
Flute Length — in (LCF)3.3125"
Flute Length — mm (LCF)84.14 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3281"
Connection Dia. — mm (DCON)8.33 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233765
EAN7320760717684
File Type Download
333HD21/64 — 3D Model STP Download
333HD21/64 — Line Drawing PDF Download
