333HD11/32
333HD11/32

333HD11/32

UGC PRE7233766
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.84 CAD - $10.84 CAD
$10.84 CAD
$10.84 CAD - $10.84 CAD
$10.84 CAD

Vendu en lots de : 6

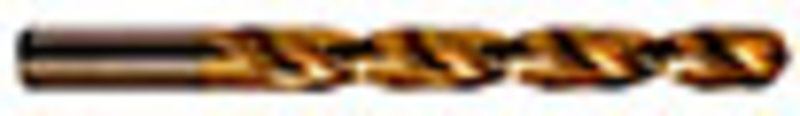

Foret hélicoïdal de longueur jobber à queue droite, diamètre 0,3438" (11/32) avec une longueur totale de 4,3/4" et une longueur de goujure de 3,7/16" selon la norme ANSI avec pointe fendue à 135°, HSS avec revêtement TiN pour perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD11/32
GradeTiN
Product Number7233766
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)4.75"
Overall Length — mm (OAL)120.65 mm
Flute Length — in (LCF)3.4375"
Flute Length — mm (LCF)87.31 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233766
EAN7320760717691
File Type Download
333HD11/32 — 3D Model STP Download
333HD11/32 — Line Drawing PDF Download
