333HD31/64
333HD31/64

333HD31/64

UGC PRE7233775
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.57 CAD - $21.57 CAD
$21.57 CAD
$21.57 CAD - $21.57 CAD
$21.57 CAD

Vendu en lots de : 6

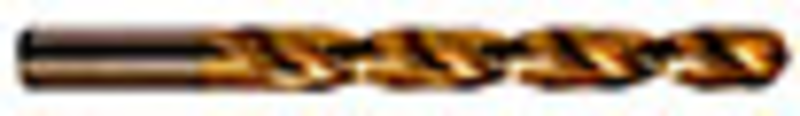

Foret court avec queue cylindrique, diamètre 0,4844" (31/64) avec une longueur totale de 5.7/8" et une longueur de goujure de 4.3/8" selon la norme ANSI avec une pointe à 135° en croix, HSS avec revêtement TiN pour le perçage 4xD sans débourrage dans l'acier et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)333HD31/64
GradeTiN
Product Number7233775
Product Family333HD
Dimensions
Cutting Diameter — in (DC)0.4844"
Cutting Diameter — mm (DC)12.3 mm
Cutting Diameter — Fractional31/64
Overall Length — in (OAL)5.875"
Overall Length — mm (OAL)149.23 mm
Flute Length — in (LCF)4.375"
Flute Length — mm (LCF)111.13 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4844"
Connection Dia. — mm (DCON)12.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233775
EAN7320760717783
File Type Download
333HD31/64 — 3D Model STP Download
333HD31/64 — Line Drawing PDF Download
