312SM3/32
312SM3/32

312SM3/32

UGC PRE7233781
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.44 CAD - $1.44 CAD
$1.44 CAD
$1.44 CAD - $1.44 CAD
$1.44 CAD

Vendu en lots de : 12

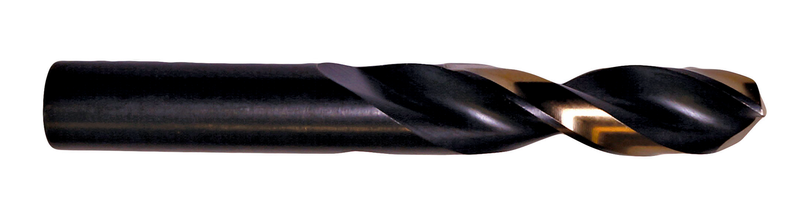

Foret court à queue cylindrique, diamètre 0,0938" (3/32) avec une longueur totale de 1,3/4" et une longueur de coupe de 3/4" selon la norme ANSI avec une pointe à 135° à quatre facettes, HSS avec finition bronze + revenu vapeur pour le perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM3/32
GradeST/Bronze
Product Number7233781
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Flute Length — in (LCF)0.75"
Flute Length — mm (LCF)19.05 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0938"
Connection Dia. — mm (DCON)2.38 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233781
EAN7320760717844
File Type Download
312SM3/32 — 3D Model STP Download
312SM3/32 — Line Drawing PDF Download
