312SM7/64
312SM7/64

312SM7/64

UGC PRE7233782
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.44 CAD - $1.44 CAD
$1.44 CAD
$1.44 CAD - $1.44 CAD
$1.44 CAD

Vendu en lots de : 12

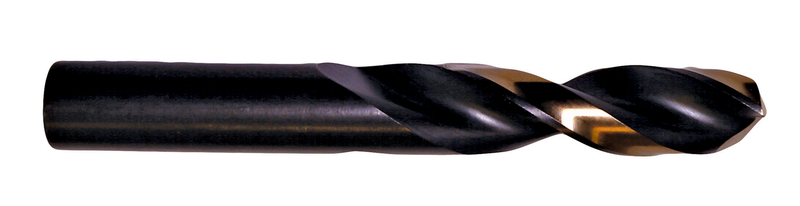

Foret court à queue cylindrique, diamètre 0,1094" (7/64) avec une longueur totale de 1.13/16" et une longueur de coupe de 13/16" selon la norme ANSI avec une pointe à 135° auto-centrante, en HSS avec finition bronze + revenu vapeur pour le perçage à 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM7/64
GradeST/Bronze
Product Number7233782
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.1094"
Cutting Diameter — mm (DC)2.78 mm
Cutting Diameter — Fractional7/64
Overall Length — in (OAL)1.8125"
Overall Length — mm (OAL)46.04 mm
Flute Length — in (LCF)0.8125"
Flute Length — mm (LCF)20.64 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1094"
Connection Dia. — mm (DCON)2.78 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233782
EAN7320760717851
File Type Download
312SM7/64 — 3D Model STP Download
312SM7/64 — Line Drawing PDF Download
