312SM1/8
312SM1/8

312SM1/8

UGC PRE7233783
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.40 CAD - $1.40 CAD
$1.40 CAD
$1.40 CAD - $1.40 CAD
$1.40 CAD

Vendu en lots de : 12

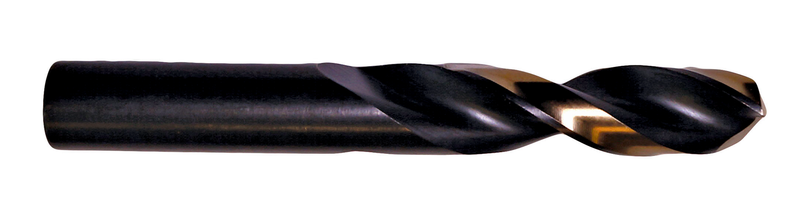

Foret court à queue cylindrique, diamètre 0,1250" (1/8) avec une longueur totale de 1,7/8" et une longueur de coupe de 7/8" selon la norme ANSI avec une pointe à affûtage en croix à 135°, en acier rapide avec finition bronzée + revenu à la vapeur pour perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM1/8
GradeST/Bronze
Product Number7233783
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.875"
Overall Length — mm (OAL)47.63 mm
Flute Length — in (LCF)0.875"
Flute Length — mm (LCF)22.23 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233783
EAN7320760717868
File Type Download
312SM1/8 — 3D Model STP Download
312SM1/8 — Line Drawing PDF Download
